Our G12 Pro Series is one of our premium ranges offering tools that are designed with power & compact size in mind. Our Brushless motor (BLDC) delivers high efficiency, precise torque, long lifespan and less maintenance. Using the same battery platform as the G12 series.

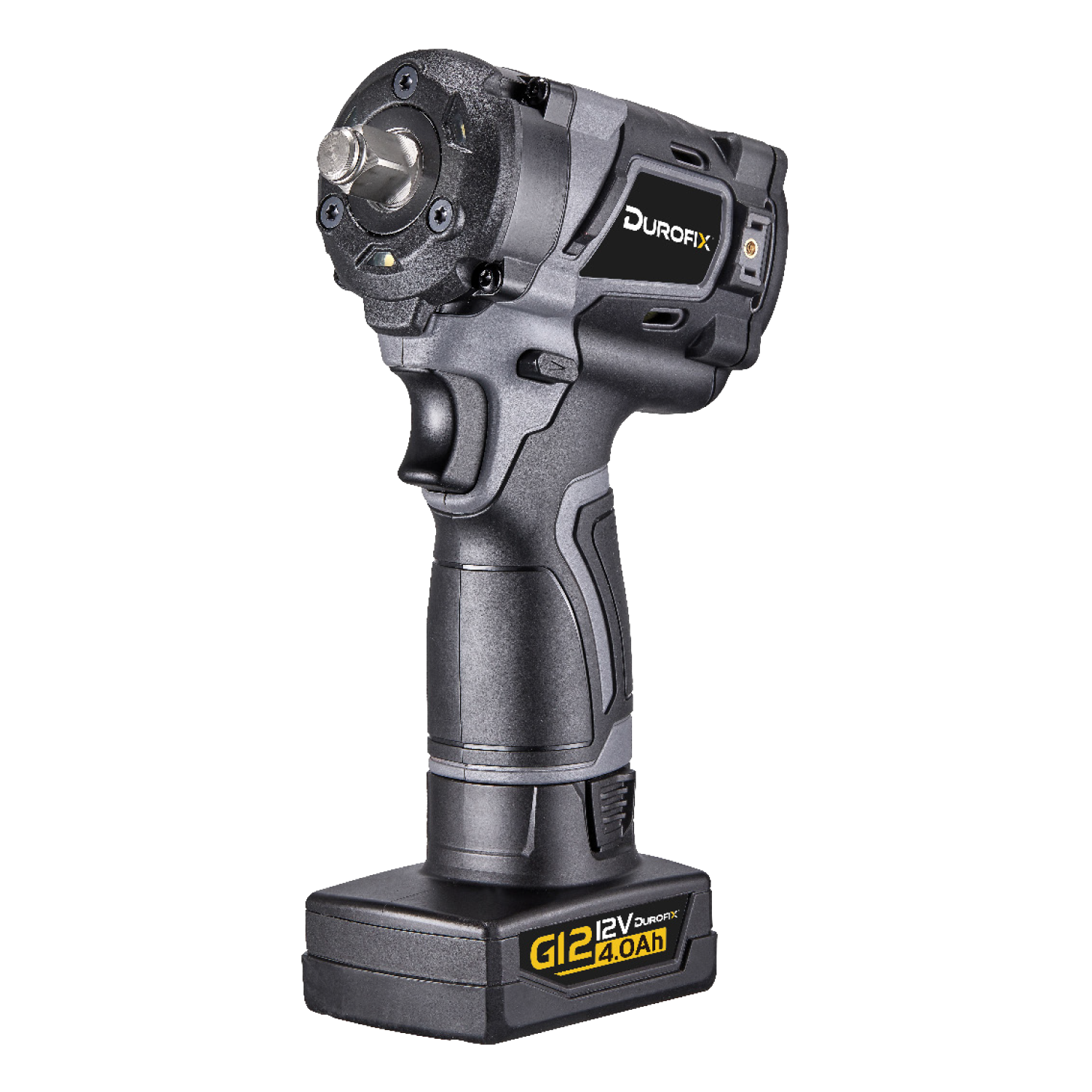

RI12184

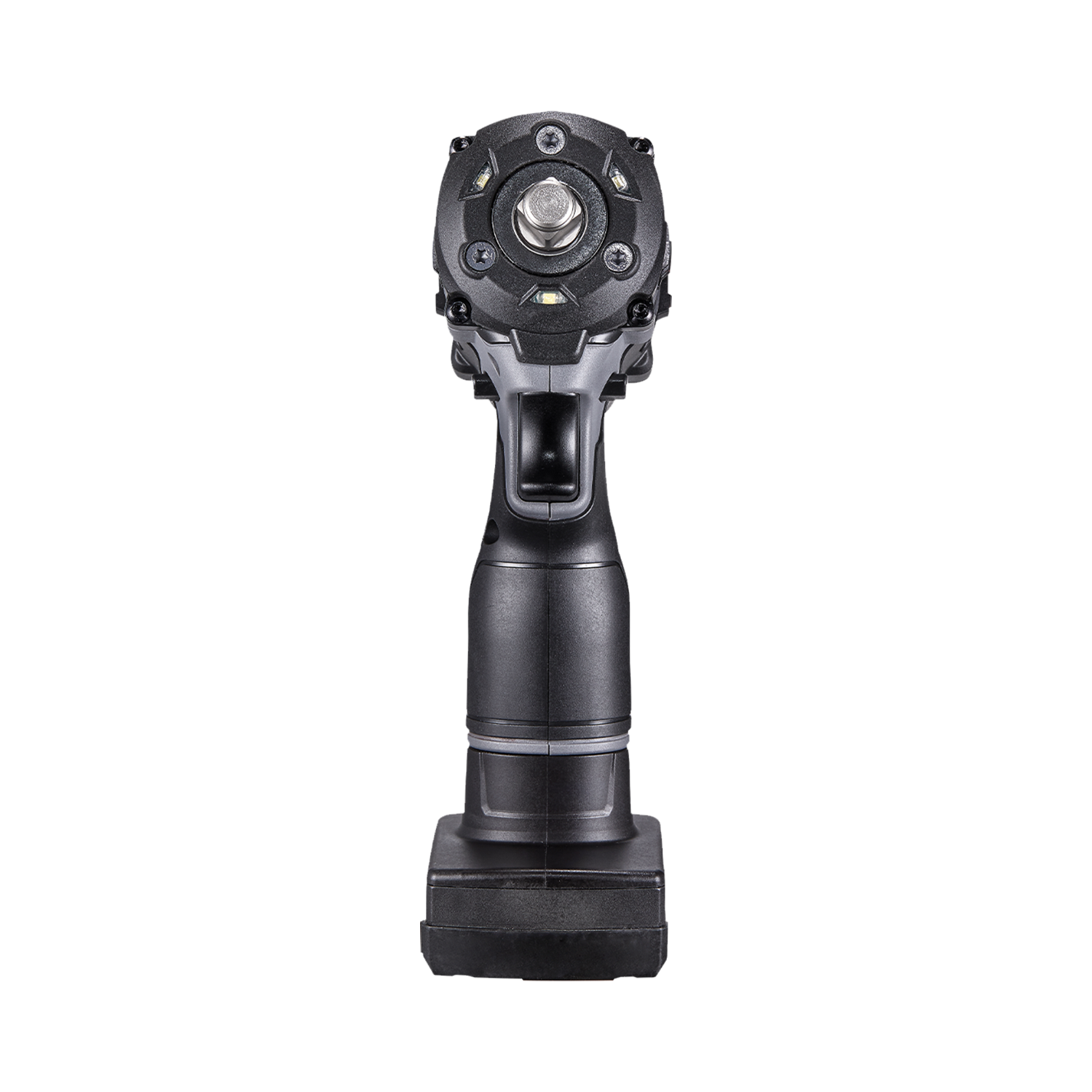

RI12184 - Image 2

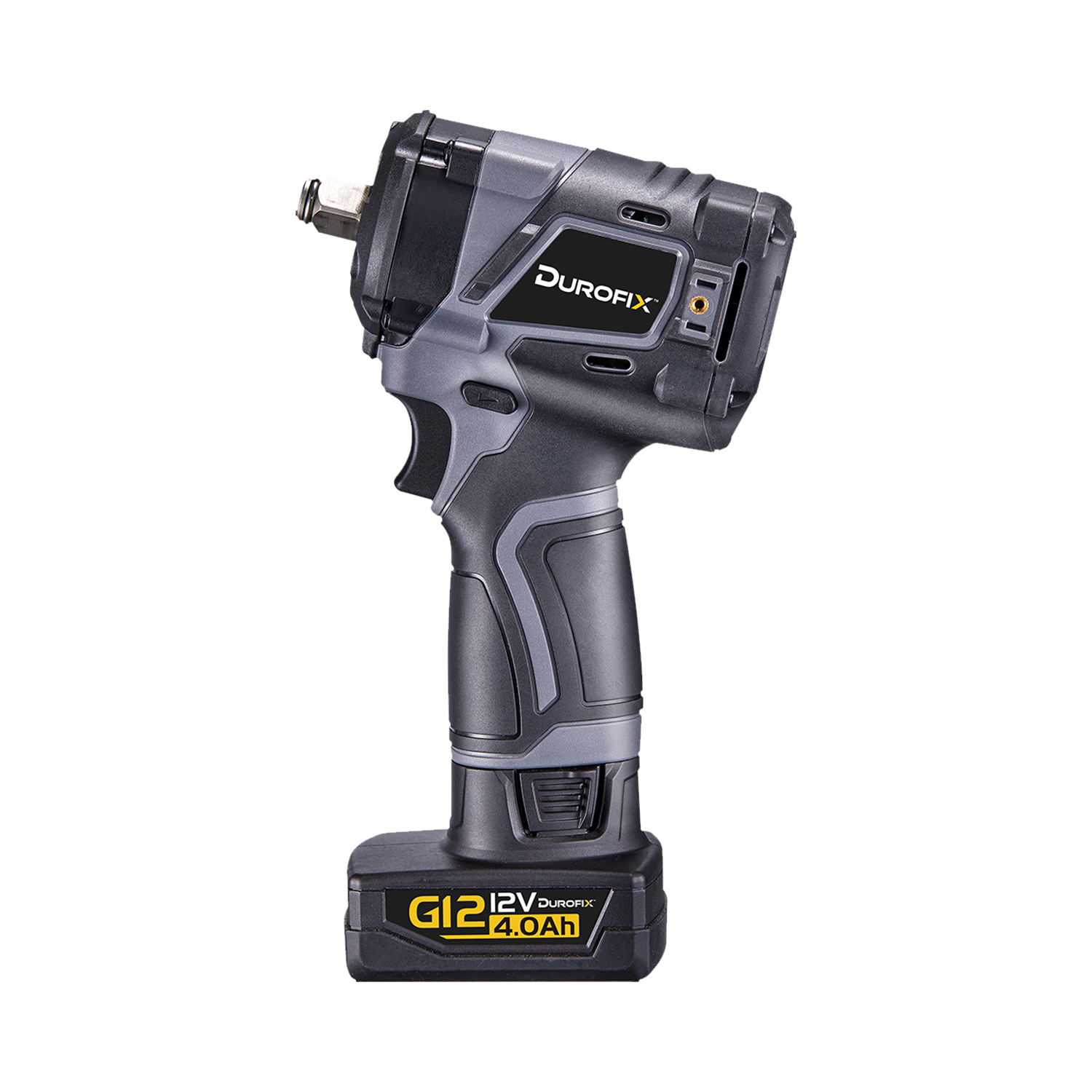

RI12184 - Image 3
RI12184 - Image 4

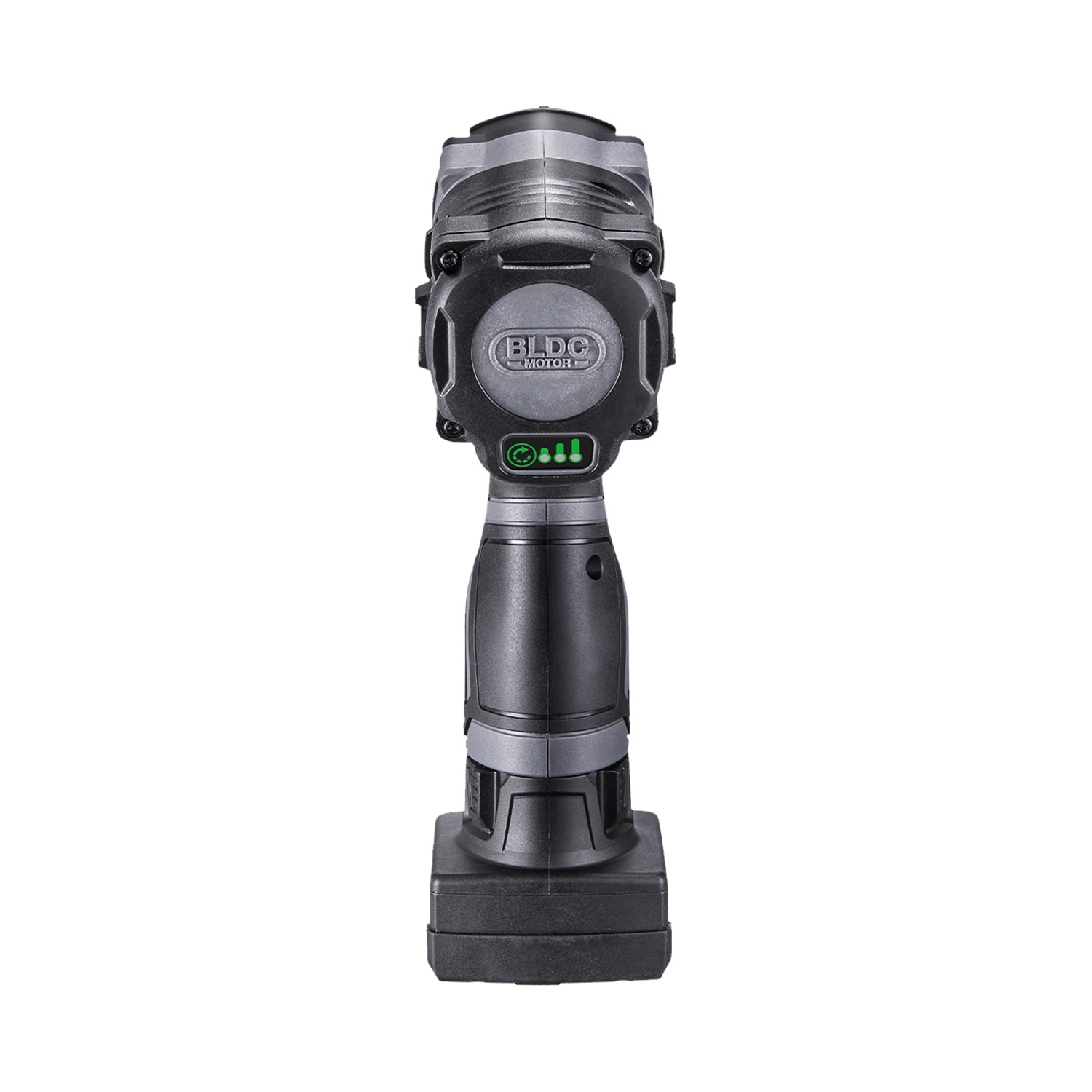

RI12184 - Image 5

RI12184

12V Stubby Impact Driver



  • Automotive repair and maintenance, ideal for fast removal and tightening of wheel nuts, suspension bolts, and engine components in confined spaces

  • Vehicle assembly lines where compact tools are required for quick, repeatable fastening

  • Motorcycle and small engine servicing, offering precise torque control in tight access areas

  • HVAC installation and maintenance, perfect for securing brackets, compressors, and fittings

  • Machinery and equipment servicing, suitable for disassembly and reassembly tasks in workshops or field environments

  • Industrial maintenance operations, enabling high-torque performance in space-restricted conditions

  • Construction and metal fabrication are efficient for bolting steel frames, scaffolding, and support structures

  • Aerospace and transport maintenance, where lightweight, compact tools help access narrow or recessed fittings

  • General workshop use, providing professional-grade torque output in a portable, ergonomic form



PRODUCT DATASHEET                                          PRODUCT USER MANUAL
PDF                                                                 PDF

Download
Download

Tool Features

Technologies

Our patent-pending All-In-One motor includes the power, control & communication board along with the automatic winding stator with an interior permanent magnet design rotor, all enclosed in a die-cast cover. These one-unit components have several advantages, including weight reduction, longer lifespan, and crucially our number one design goal of efficiency as there are no additional components to cool.

DC motors have traditionally been driven by carbon brushes to power the motor. Over time these wear out and need replacing. All our motors are brushless meaning that the motor is controlled electronically without the need for carbon brushes ensuring your tool is maintenance-free.

PRODUCT VIDEO

TECHNICAL SPECIFICATIONS

  • Industry-leading 540 Nm of breakaway reverse torque
  • Brushless motor ensuring consistent high performance
  • Auto shut-off prevents over-fastening and damage
  • Breakaway auto shut-off cuts the tool off automatically when unfastening
  • Integrated LED work light ensures visibility when working in dark or obstructed areas
  • Compact, stubby design at only 132mm in length for accessing tighter workspaces
  • Variable speed trigger provides precise torque control across multiple applications
  • Fully compatible with the Durofix G12 platform, allowing use with all G12 series batteries and chargers



Additional information

Model

RI12184
Voltage

Drive

1/2" Square
Max Tightening Torque

338 Nm
Max Reverse Torque

540 Nm
Torque Control 3-Mode

85 Nm / 155 Nm / 240 Nm
No Load Speed

0 – 2,800 RPM
Impact Per Minute

0 – 3,200 IPM
Tool Weight

1.05 Kg

Dimensional drawing

NOISE / VIBRATION INFORMATION

Noise Value

Sound Pressure Level (LpA )
101/ dB(A)
  • Noise Uncertainty (K Factor) 3.0 dB(A)

Vibration Value

Average Vibration Level (Ah)*
13.58/m / s2
  • Uncertainty  Level (K Factor) 1.5 m/s2
