Designed for Industry 4.0, this series is both robust and intelligent, allowing an audit trail to be created for user operations, utilizing cutting-edge technologies for critical and non-critical operations alike.
Tool Features
Technologies
DC motors have traditionally been driven by carbon brushes to power the motor. Over time these wear out and need replacing. All our motors are brushless meaning that the motor is controlled electronically without the need for carbon brushes ensuring your tool is maintenance-free.
Our patent-pending All-In-One motor includes the power, control & communication board along with the automatic winding stator with an interior permanent magnet design rotor, all enclosed in a die-cast cover. These one-unit components have several advantages, including weight reduction, longer lifespan, and crucially our number one design goal of efficiency as there are no additional components to cool.
Electronic Torque Control uses our advanced tightening technology to automatically shut off when the correct torque has been achieved. Different models will have alternative different stages to customize your workflow to optimize to the correct workload.
PRODUCT VIDEO
TECHNICAL SPECIFICATIONS
Key features include:
* 1/2” Square drive with a 50-stage pre-set torque ranging from 25 to 170 Nm
* Precise auto shut-off when it reaches the desired torque with LED and buzzer indicator of joint status for either good or not-good fixing
* Patented Electronic Torque Control (ETC) for precise torque cut-off

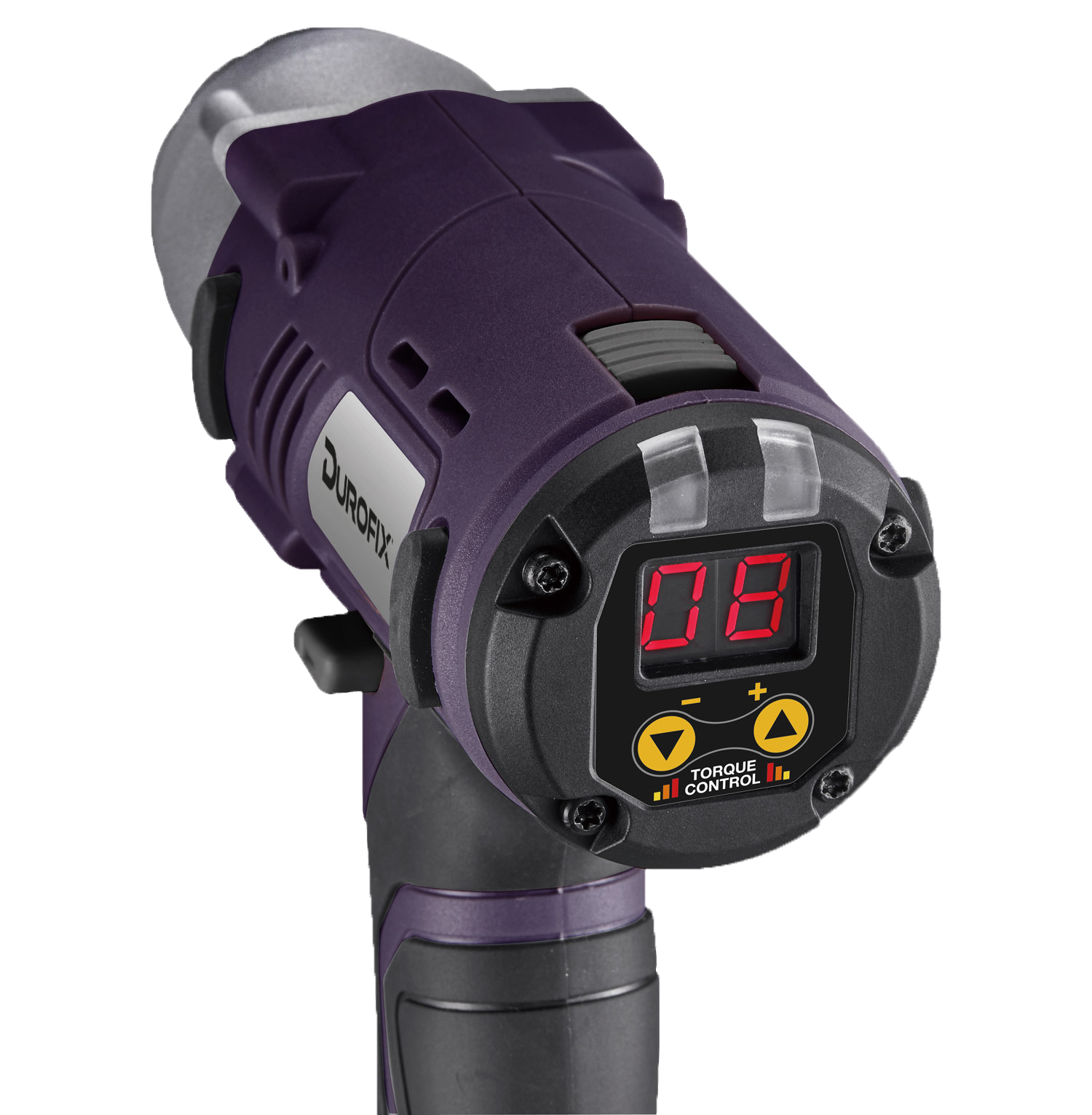

* Features a display showing torque stage and error messages
* The brushless motor ensures the use of wear-free components, which reduces maintenance costs and extends the life cycle of the product
Additional information
| Model | RI20126 |
|---|---|
| Voltage | |
| Drive | 1/2" Square |
| Max Tightening Torque | 250 Nm |
| Max Reverse Torque | 375 Nm |
| No Load Speed | 0 – 2,600 RPM |
| Impact Per Minute | 0 – 3,000 IPM |
| Control Torque Range | 25 – 170 Nm |
| Tool length | 200 mm |
| Tool Weight | 1.96 Kg |
RI20126
Torque
Stages
Featuring different preset torque levels plus auto shut-off to offer precise control and consistent results across a variety of fastening tasks. Each stage corresponds to a different torque value (for example: 100 Nm, 200 Nm, 300 Nm, 400 Nm, 500 Nm, 600 Nm, 700 Nm), enabling the operator to select the exact torque requirement for the job and rely on the tool stopping cleanly when that limit is reached.
This multi-stage setting with auto shut-off means you can:
-
Avoid over-tightening critical fasteners and damaging threads or components.
-
Switch quickly between tasks requiring different torque levels without changing tools.
-
Ensure consistency across repeated assembly jobs, ideal for production or maintenance workflows.
Dimensional drawing
NOISE / VIBRATION INFORMATION
Noise Value
Sound Pressure Level (LpA )- Noise Uncertainty (K Factor) 3.0 dB(A)
Vibration Value
Average Vibration Level (Ah)*- Uncertainty Level (K Factor) 3.0 m / s2
