Tool Features
Technologies
Electronic Torque Control uses our advanced tightening technology to automatically shut off when the correct torque has been achieved. Different models will have alternative different stages to customize your workflow to optimize to the correct workload.
Our Electronic Pulse System is an electronic algorithm to dampen reactive forces for direct drive tools when they reach the desired torque. This process is achieved by pulsing the electric motor rather than applying continuous power to reduce the overall force applied to the user.
Our patent-pending All-In-One motor includes the power, control & communication board along with the automatic winding stator with an interior permanent magnet design rotor, all enclosed in a die-cast cover. These one-unit components have several advantages, including weight reduction, longer lifespan, and crucially our number one design goal of efficiency as there are no additional components to cool.
DC motors have traditionally been driven by carbon brushes to power the motor. Over time these wear out and need replacing. All our motors are brushless meaning that the motor is controlled electronically without the need for carbon brushes ensuring your tool is maintenance-free.
We have leveraged decades of electrical expertise from some of the world’s leading electrical engineers to develop our wireless platform to record and control our professional assembly tools, that can be remotely controlled via our software or different protocols for PLC systems.
PRODUCT VIDEO
TECHNICAL SPECIFICATIONS
Key features include:
* Network Rail pads approved – Catalogue 0039/127079
* Parallel battery system for double capacity & run-time

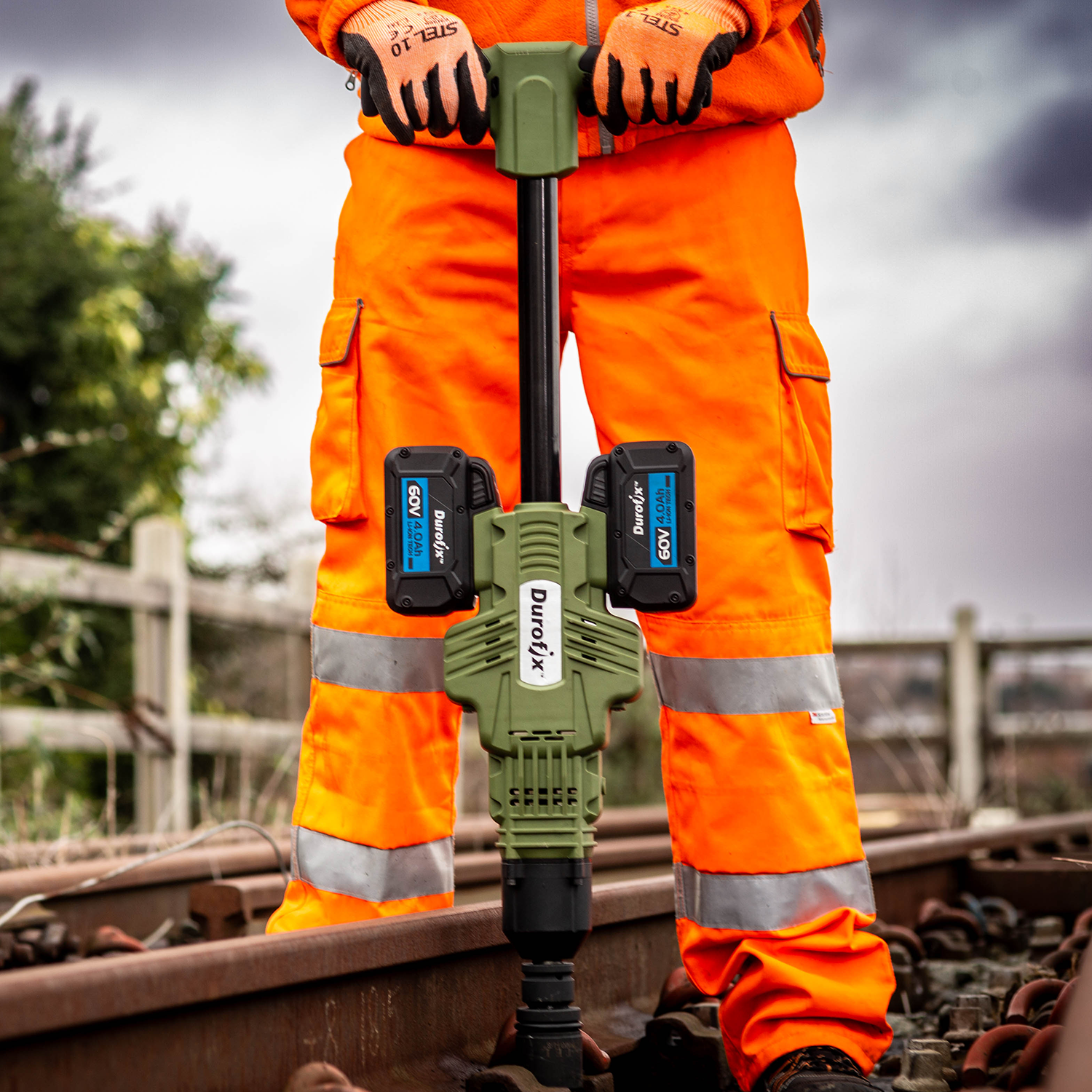

* Railway maintenance made easy with extended handle design
* 36-stage torque settings for auto-shut-off
* Integrated LED light for convenient illumination during work
Additional information
| Model | RI60180A2-6 |
|---|---|
| Voltage | |
| Max Tightening Torque | 1,450 Nm |
| Max Reverse Torque | 2,175 Nm |
| No Load Speed | 0 – 1,600 RPM |
| Tool Weight | 5.88 kg |

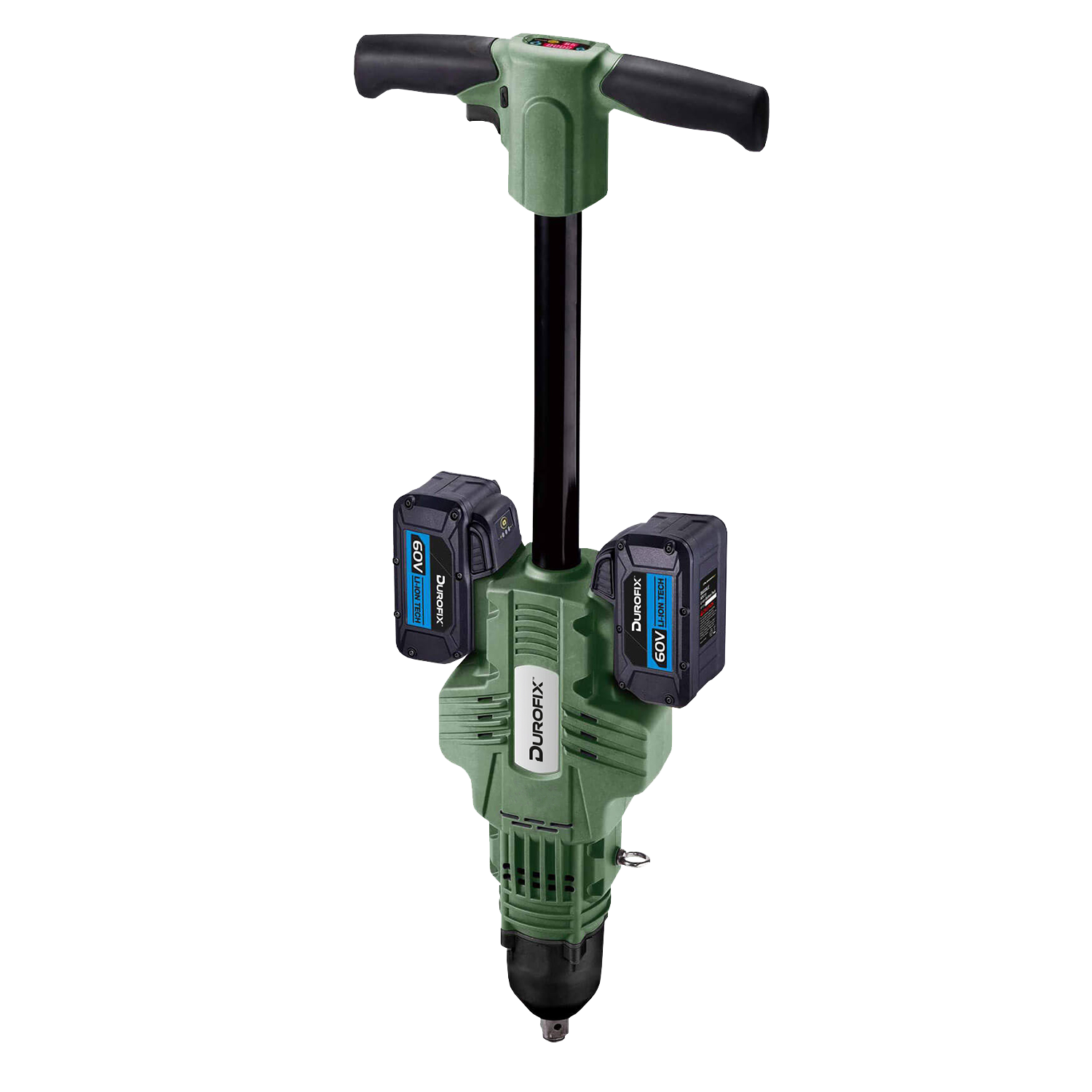

RI60180A2-6
Torque
Stages
Featuring different preset torque levels plus auto shut-off to offer precise control and consistent results across a variety of fastening tasks. Each stage corresponds to a different torque value (for example: 100 Nm, 200 Nm, 300 Nm, 400 Nm, 500 Nm, 600 Nm, 700 Nm), enabling the operator to select the exact torque requirement for the job and rely on the tool stopping cleanly when that limit is reached.
This multi-stage setting with auto shut-off means you can:
-
Avoid over-tightening critical fasteners and damaging threads or components.
-
Switch quickly between tasks requiring different torque levels without changing tools.
-
Ensure consistency across repeated assembly jobs, ideal for production or maintenance workflows.
Dimensional drawing
NOISE / VIBRATION INFORMATION
Noise Value
Sound Pressure Level (LpA )- Noise Uncertainty (K Factor) 3.0 dB(A)
Vibration Value
Average Vibration Level (Ah)*- Uncertainty Level (K Factor) 3.0 m / s2
