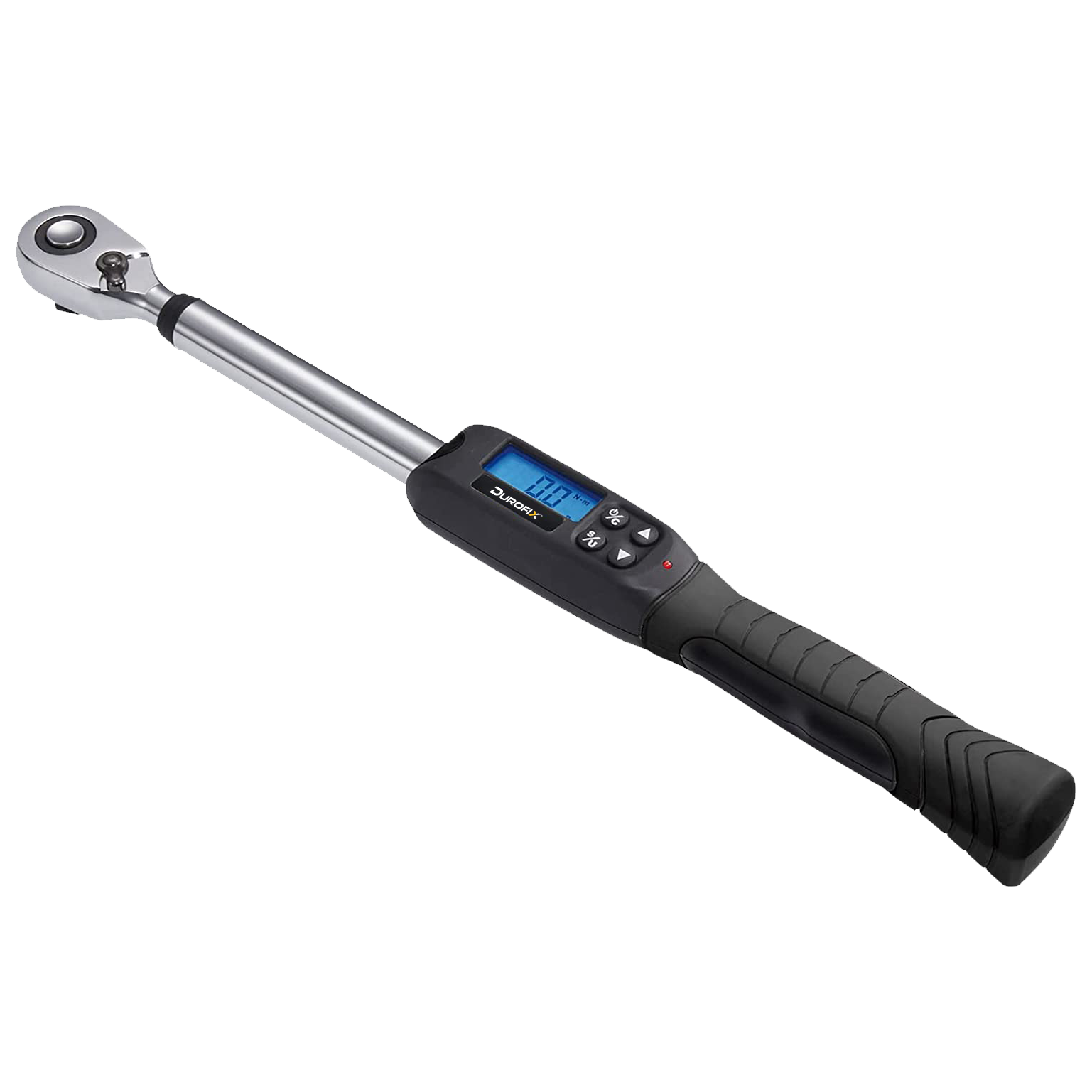

RM607-4

1/2″ Angle Digital Torque Wrench

Precision torque calibration for professional assembly and maintenance environments
Automotive service and repair, including engine assembly, wheel installation, and drivetrain work
Aerospace and aviation maintenance, where verified torque accuracy is essential
Industrial machinery setup and production line torque verification
Electronics and instrumentation assembly, requiring controlled fastening torque
Quality control and inspection departments for torque testing and data recording
Laboratory and R&D environments performing mechanical testing or calibration
HVAC and plumbing installations involving torque-critical fittings or fixtures
General maintenance tasks demanding repeatable, ISO-certified torque precision

PRODUCT DATASHEET PRODUCT USER MANUAL
PDF PDF

Download

Tool Features

TECHNICAL SPECIFICATIONS

High-accuracy digital torque measurement for superior calibration precision
Dual-direction operation — measures torque in both clockwise and counter-clockwise directions
Large back-lit LCD display showing readings in N·m, kg-cm, in-lb, and ft-lb
Multiple feedback alerts — visual LED, audible buzzer, and vibration notification when torque is achieved
Selectable Peak or Trace modes for flexible torque monitoring
Memory storage for up to 30 torque data sets, allowing easy recall of previous settings
Durable construction with anti-slip soft grip for comfort and control during extended use
Energy-efficient auto-shutoff after one minute of inactivity to preserve battery life
Fully calibrated to ISO 6789 standards, ensuring professional-grade accuracy and reliability
Supplied with premium steel presentation case for secure storage and transport

Model	RM607-4
Drive	1/2" Square
Voltage	6 Vdc
Head Type	Quick Release Ratchet
Length (w/o battery)	440 mm
Accuracy	CW +- 2% CCW +- 3%
Operating Torque Range	20-200Nm
Memory Capacity	30 Data sheets
LED	2 LED(Green & Red)
Vibration Warning	Yes (While reaching to 90% of setting value)
Resolution	1 Kg-cm / 0.1 Nm / 1 in-lb / 0.1 ft-lb /1°
Operation Mode	Peak (K) / Trace (F)
Power Saving Mode	After 60 Seconds of no use
Operating Tempature	-10°C ~ 60°C
Storage Temperature	-20°C ~ 70°C
Battery	AAA (Alkaline) Battery x2
Tool Weight	0.64 Kg
