Designed for Industry 4.0, this series is both robust and intelligent, allowing an audit trail to be created for user operations, utilizing cutting-edge technologies for critical and non-critical operations alike.
Tool Features
Technologies
Our patent-pending All-In-One motor includes the power, control & communication board along with the automatic winding stator with an interior permanent magnet design rotor, all enclosed in a die-cast cover. These one-unit components have several advantages, including weight reduction, longer lifespan, and crucially our number one design goal of efficiency as there are no additional components to cool.
DC motors have traditionally been driven by carbon brushes to power the motor. Over time these wear out and need replacing. All our motors are brushless meaning that the motor is controlled electronically without the need for carbon brushes ensuring your tool is maintenance-free.
PRODUCT VIDEO
TECHNICAL SPECIFICATIONS
Key features include:
* It supports various rivet materials, including aluminium, steel (up to 6.4mm), and stainless steel (up to 4.8mm)
* Capable of accommodating blind rivets with diameters of up to 6.4mm
* One-touch trigger & reverse function, ensuring ease of use and quick operation

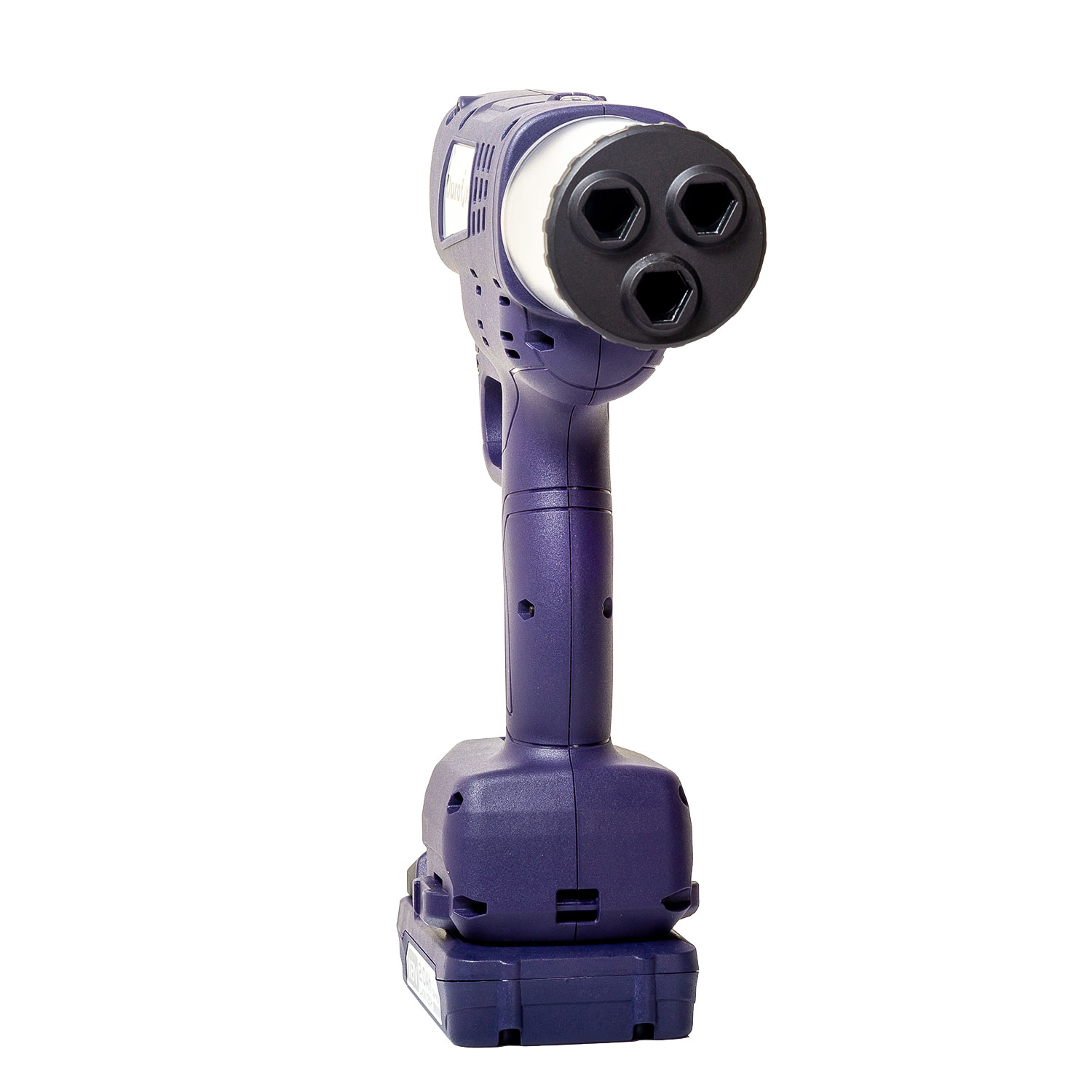

* The tool features an Integrated Mandrel Collector capable of holding up to 200 mandrels with a nozzles (nose piece) holder
* The brushless motor ensures the use of wear-free components, which reduces maintenance costs and extends the life cycle of the product
Additional information

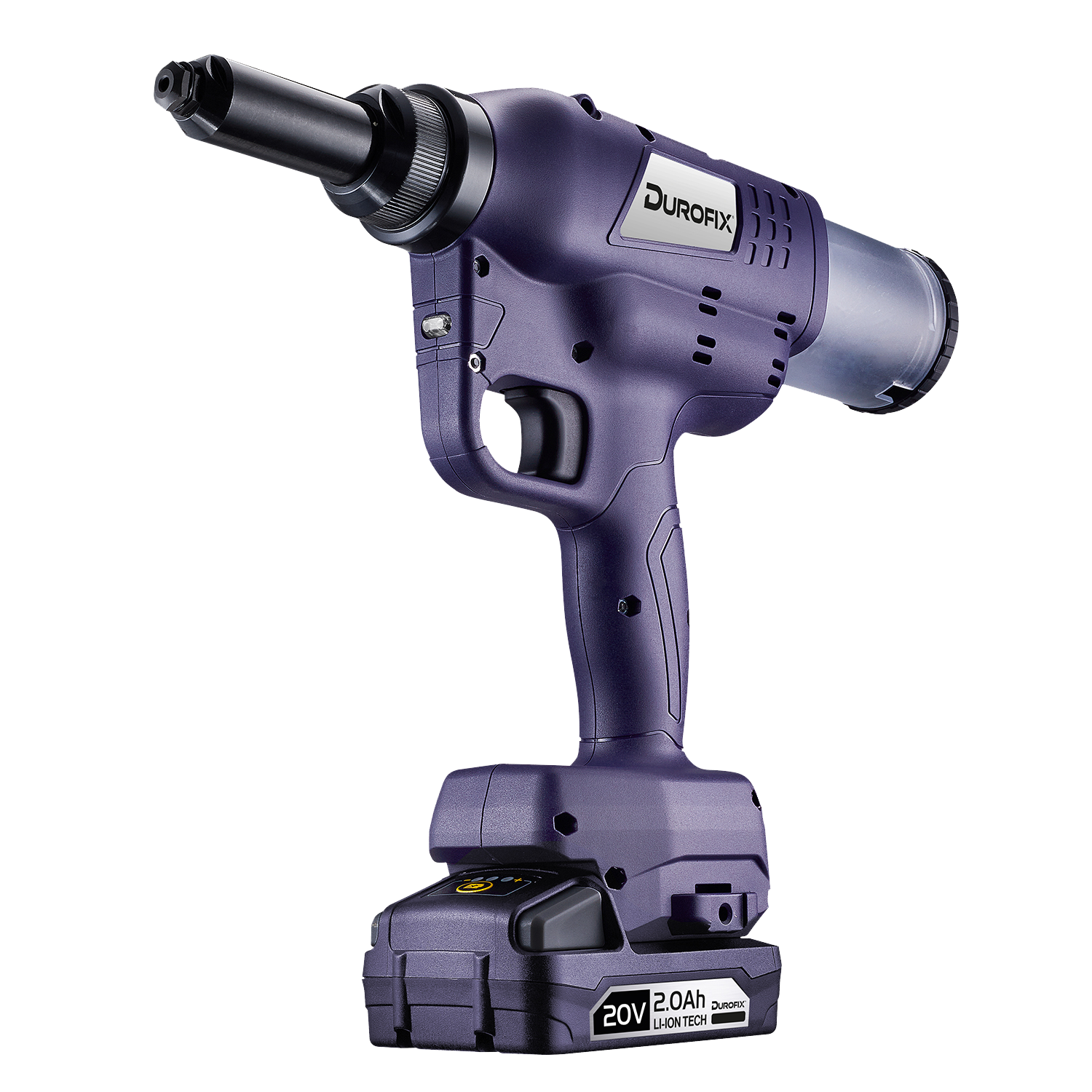

| Model | RV20108 |
|---|---|
| Voltage | |
| Blind Rivet Size | 3.2 / 4.0 / 4.8 / 6.4 mm |
| Max Setting Force | 20,000 N |
| Tool length | 250 mm |
| Tool Weight | 2.3 kg |
Dimensional drawing
NOISE / VIBRATION INFORMATION
Noise Value
Sound Pressure Level (LpA )- Noise Uncertainty (K Factor) 3.0 dB(A)
Vibration Value
Average Vibration Level (Ah)*- Uncertainty Level (K Factor) 3.0 m / s2
