Designed for Industry 4.0, this series is both robust and intelligent, allowing an audit trail to be created for user operations, utilizing cutting-edge technologies for critical and non-critical operations alike.
Tool Features
Technologies
Our patent-pending All-In-One motor includes the power, control & communication board along with the automatic winding stator with an interior permanent magnet design rotor, all enclosed in a die-cast cover. These one-unit components have several advantages, including weight reduction, longer lifespan, and crucially our number one design goal of efficiency as there are no additional components to cool.
We have leveraged decades of electrical expertise from some of the world’s leading electrical engineers to develop our wireless platform to record and control our professional assembly tools, that can be remotely controlled via our software or different protocols for PLC systems.
DC motors have traditionally been driven by carbon brushes to power the motor. Over time these wear out and need replacing. All our motors are brushless meaning that the motor is controlled electronically without the need for carbon brushes ensuring your tool is maintenance-free.
PRODUCT VIDEO
TECHNICAL SPECIFICATIONS
Key features include:
- Precise auto shut-off when it reaches the desired torque with LED and buzzer indicator of joint status for either good or not-good fixing
- Built-in 2-way wireless communication that can connect to a PLC unit or computer
- OLED display for instant achieved torque, angle, and batch count information
- Enhanced ergonomics, lightweight design, coupled with responsive power delivery for effortless and enduring productivity
- Exceeding Cmk (based on 6 σ) ≥ 1.67 at ±10%
- The brushless motor ensures the use of wear-free components, which reduces maintenance costs and extends the life cycle of the product
Additional information

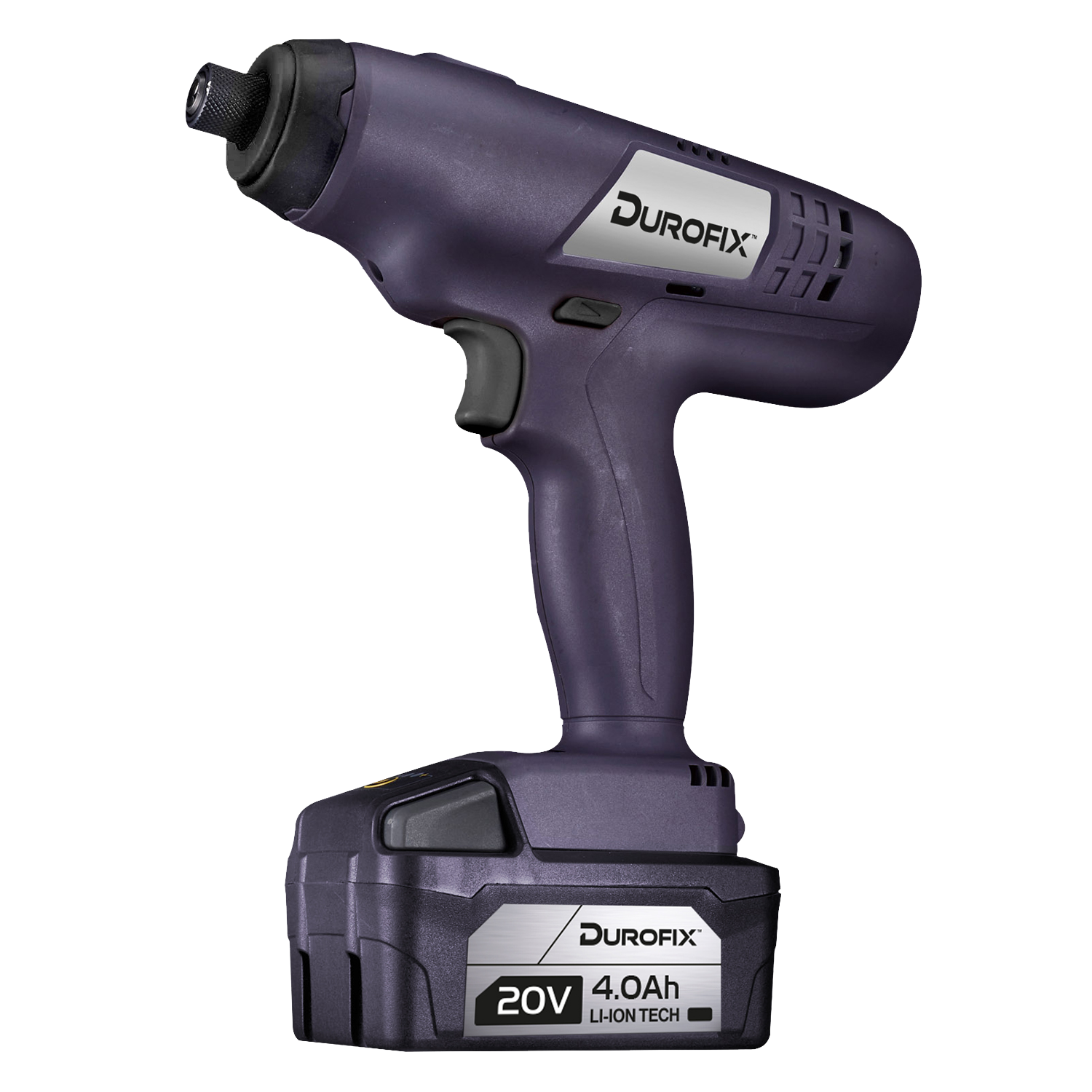

| Model | RV2048-WR12 |
|---|---|
| Voltage | |
| Drive | 1/4" Hex |
| Control Torque Range | 3 – 12 Nm |
| Programmable Speed | 700 – 1,000 RPM |
| Accuracy | Cmk (based on 6 σ) ≥ 1.67 at ±10% |
| Tool length | 210 mm |
| Tool Weight | 1.1 kg |
Dimensional drawing
NOISE / VIBRATION INFORMATION
Noise Value
Sound Pressure Level (LpA )- Noise Uncertainty (K Factor) 3.0 dB(A)
Vibration Value
Average Vibration Level (Ah)*- Uncertainty Level (K Factor)3.0 m/s2
