Our G12 Pro Series is one of our premium ranges offering tools that are designed with power & compact size in mind. Our Brushless motor (BLDC) delivers high efficiency, precise torque, long lifespan and less maintenance. Using the same battery platform as the G12 series.

RW1216-3

RW1216-3

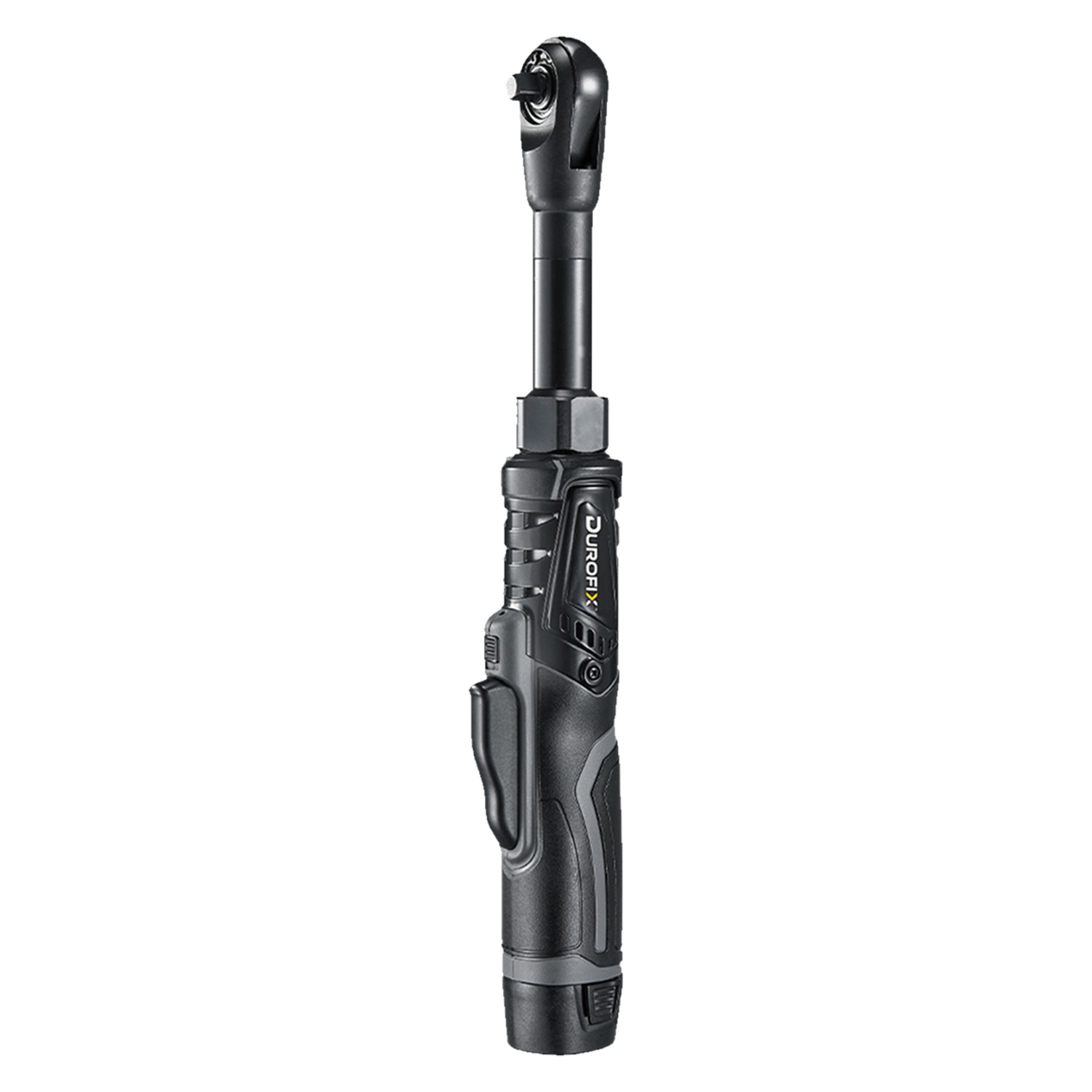

12V 1/2” Ratchet Wrench

  • Compact fastening in tight spaces — The 3/8″ square drive with extended neck and slim build lets you reach bolts and nuts in narrow or awkward areas where standard wrenches or impact wrenches won’t fit.

  • Light to medium bolt tightening and loosening — With up to 65 ft-lbs (≈ 88 Nm) torque and variable speed up to 260 RPM, it’s useful for automotive work, light machinery maintenance, furniture/fixture assembly or other medium-duty fastening tasks.

  • Ergonomic, low-fatigue work over repeated tasks — The soft-grip handle, compact body and 6″ extended head improve comfort and accessibility, making the tool handy for repeated or prolonged fastening jobs.

  • Good for dark, confined or mobile working conditions — The built-in LED helps illuminate dark or cramped spaces (under vehicles, inside machinery, in engine bays, etc.), and the 12 V battery makes it portable and convenient for mobile repair or maintenance jobs.

PRODUCT DATASHEET                                          PRODUCT USER MANUAL
PDF                                                                 PDF

Download
Download

Tool Features

Technologies

Our patent-pending All-In-One motor includes the power, control & communication board along with the automatic winding stator with an interior permanent magnet design rotor, all enclosed in a die-cast cover. These one-unit components have several advantages, including weight reduction, longer lifespan, and crucially our number one design goal of efficiency as there are no additional components to cool.

DC motors have traditionally been driven by carbon brushes to power the motor. Over time these wear out and need replacing. All our motors are brushless meaning that the motor is controlled electronically without the need for carbon brushes ensuring your tool is maintenance-free.

PRODUCT VIDEO

TECHNICAL SPECIFICATIONS

  • Compact and lightweight design
  • Illuminates work area with a single LED for brighter and optimized light
  • Features a replaceable impact-resistant Lens designed to withstand tough jobsite conditions

Additional information

Model

RW1216-3
Voltage

Drive

3/8" Square
Max Tightening Torque

88 Nm
No Load Speed

0 – 2,800 RPM
Extended Neck Length

152 mm
Tool Weight

1.36 kg

Dimensional drawing

NOISE / VIBRATION INFORMATION

Noise Value

Sound Pressure Level (LpA )
/ dB(A)
  • Noise Uncertainty (K Factor) 3.0 dB(A)

Vibration Value

Average Vibration Level (Ah)*
/m / s2
  • Uncertainty  Level (K Factor) 1.5 m/s2
