Our G12 Pro Series is one of our premium ranges offering tools that are designed with power & compact size in mind. Our Brushless motor (BLDC) delivers high efficiency, precise torque, long lifespan and less maintenance. Using the same battery platform as the G12 series.

RW1221-2

RW1221-2

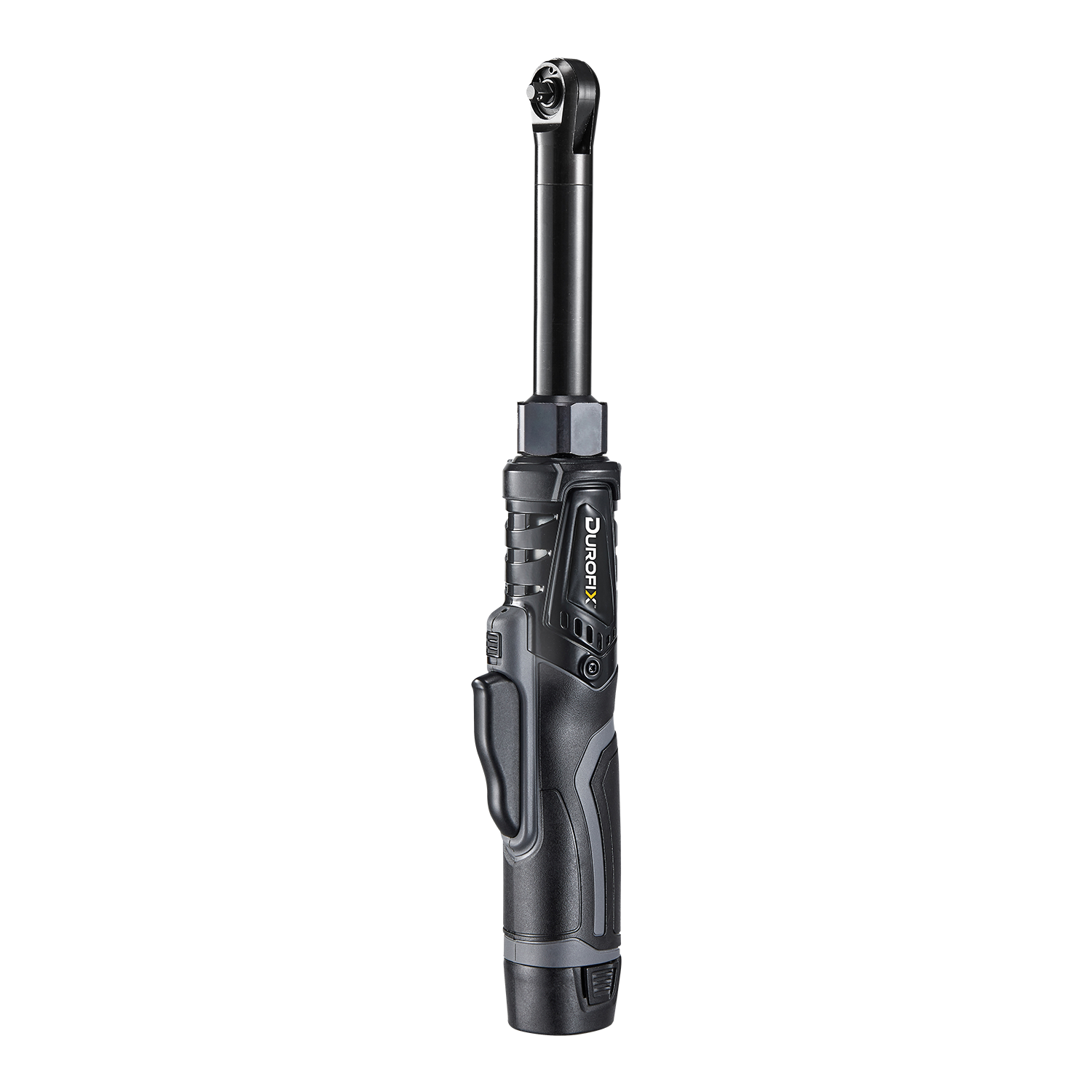

12V 1/4” Extended Ratchet Wrench

  • Fastening in tight or confined spaces – The compact 1/4″ (or 3/8″ for other variants) drive and 6″ extended ratchet head make it ideal for reaching bolts or nuts in narrow, hard-to-access areas, such as engine bays, underdash assemblies, or machinery enclosures.

  • Quick loosening and tightening of fasteners – Variable-speed trigger (0–450 RPM) combined with a brushless motor makes it efficient for loosening or tightening bolts up to ~30 ft-lb (≈ 40 Nm) drive torque — good for light- to mid-duty fastening tasks in automotive or maintenance work.

  • Work in tight, awkward or poorly lit environments – The built-in LED light helps illuminate dark or cramped spaces — helpful for working under cars, inside engine compartments or inside equipment enclosures.

  • Portable, lightweight work for maintenance or repairs – Running on the 12 V G12 battery platform and weighing approx. 1.25 kg, it’s convenient for mobile maintenance, quick service jobs, or DIY repairs where portability and ease-of-use matter.

PRODUCT DATASHEET                                          PRODUCT USER MANUAL
PDF                                                                 PDF

Download
Download

Tool Features

Technologies

Our patent-pending All-In-One motor includes the power, control & communication board along with the automatic winding stator with an interior permanent magnet design rotor, all enclosed in a die-cast cover. These one-unit components have several advantages, including weight reduction, longer lifespan, and crucially our number one design goal of efficiency as there are no additional components to cool.

DC motors have traditionally been driven by carbon brushes to power the motor. Over time these wear out and need replacing. All our motors are brushless meaning that the motor is controlled electronically without the need for carbon brushes ensuring your tool is maintenance-free.

PRODUCT VIDEO

TECHNICAL SPECIFICATIONS

  • Compact and lightweight design
  • Illuminates work area with a single LED for brighter and optimized light
  • Features a replaceable impact-resistant Lens designed to withstand tough jobsite conditions

Additional information

Model

RW1221-2
Voltage

Drive

1/4" Square
Max Tightening Torque

40 Nm
Max Torque By Hand

80 Nm
No Load Speed

0 – 450 RPM
Extended Neck Length

152 mm
Tool Weight

1.07 kg

Dimensional drawing

NOISE / VIBRATION INFORMATION

Noise Value

Sound Pressure Level (LpA )
/ dB(A)
  • Noise Uncertainty (K Factor) 3.0 dB(A)

Vibration Value

Average Vibration Level (Ah)*
/m / s2
  • Uncertainty  Level (K Factor) 1.5 m/s2
