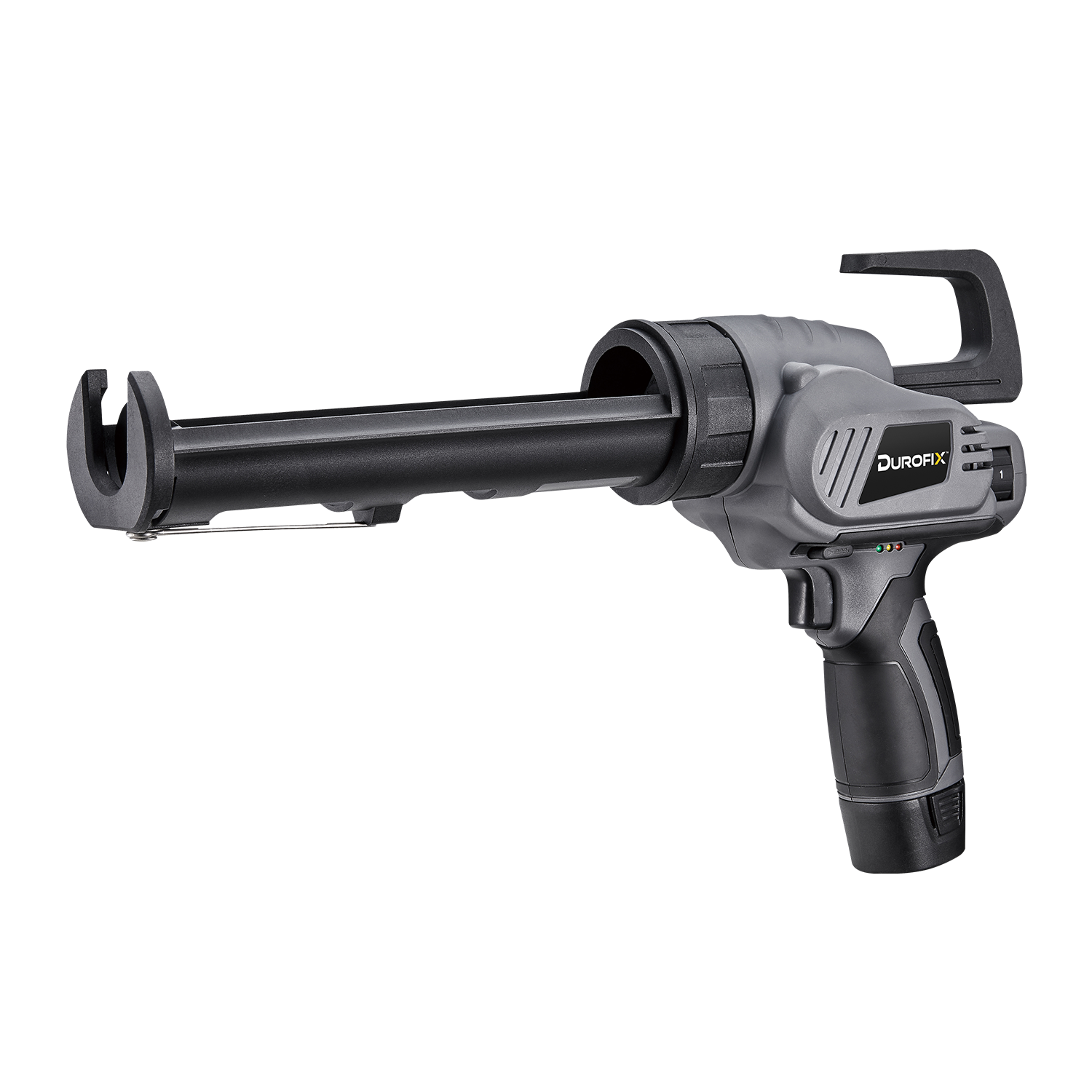

Our G12 Pro Series is one of our premium ranges offering tools that are designed with power & compact size in mind. Our Brushless motor (BLDC) delivers high efficiency, precise torque, long lifespan and less maintenance. Using the same battery platform as the G12 series.
Tool Features
Technologies
Our patent-pending All-In-One motor includes the power, control & communication board along with the automatic winding stator with an interior permanent magnet design rotor, all enclosed in a die-cast cover. These one-unit components have several advantages, including weight reduction, longer lifespan, and crucially our number one design goal of efficiency as there are no additional components to cool.
DC motors have traditionally been driven by carbon brushes to power the motor. Over time these wear out and need replacing. All our motors are brushless meaning that the motor is controlled electronically without the need for carbon brushes ensuring your tool is maintenance-free.
PRODUCT VIDEO
TECHNICAL SPECIFICATIONS
- Auto-reversing anti-drip mechanism prevents excess waste when you release the trigger
- Suitable for sealants, caulk and resins
- Ergonomic grip and balanced weight distribution minimize fatigue, allowing for comfortable extended use
Additional information
| Model | RZ1230 |
|---|---|
| Voltage | |
| Max. Pushing Force | 2,225 N |
| Pressure | 130 psi |
| Speed Setting | 8 Stages |
| Barrel Type | Composite Half-Barrel |
| Speed | 2.1 mm /s – 12 mm /s |
| Capacity | 300 ml |
| Tool Weight | 1.71 kg |
Dimensional drawing
NOISE / VIBRATION INFORMATION
Noise Value
Sound Pressure Level (LpA )- Noise Uncertainty (K Factor) 3.0 dB(A)
Vibration Value
Average Vibration Level (Ah)*- Uncertainty Level (K Factor) 1.5 m/s2
