Designed for Industry 4.0, this series is both robust and intelligent, allowing an audit trail to be created for user operations, utilizing cutting-edge technologies for critical and non-critical operations alike.

RZ2013-3-WR40

RZ2013-3-WR40

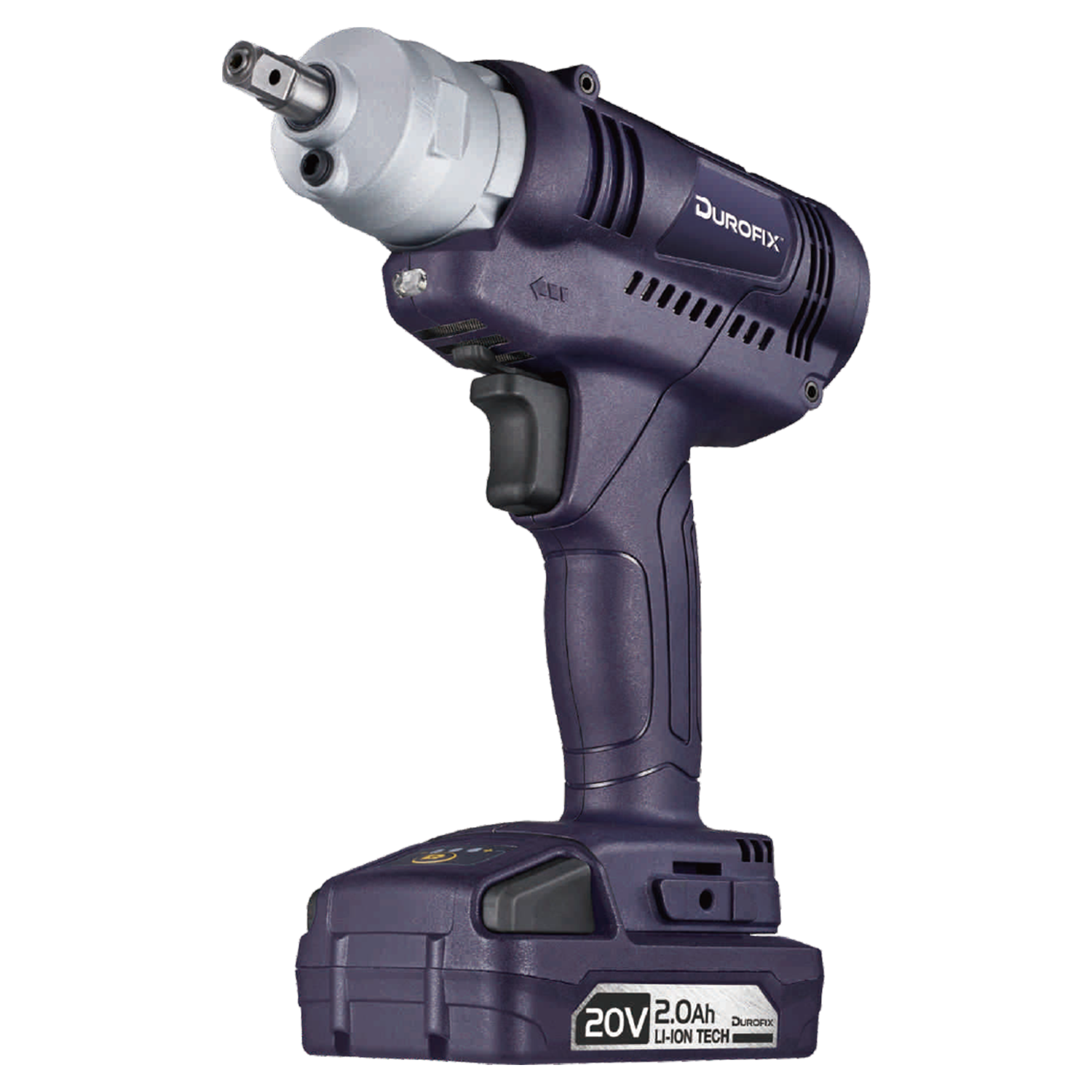

20V BRUSHLESS Oil Pulse Tool

  • Precision assembly and repeatable fastening – The oil-pulse mechanism, brushless motor, and auto-shutoff at set torque make RZ2013-3-WR40 ideal for production-line screwdriving and exact, repeatable fastening jobs.

  • Small- to medium-component assembly – With a 3/8″ square drive and torque range of 15-40 Nm, this tool is well suited for delicate or medium-duty mechanical assemblies where controlled torque and finesse matter

  • Quality-controlled / traceable fastening operations – Built-in wireless communication plus LED & buzzer joint-status indicators let you monitor and log every fastening — perfect when you need traceability, audit readiness, or consistent “OK / NG” results.

  • Comfortable, low-vibration use for extended work – Thanks to the oil-pulse system, reaction force, vibration and noise are minimal compared with impact tools — making the RZ2013-3-WR40 easier on the user and suitable for repeated or long runs of fastening.

PRODUCT DATASHEET                                          PRODUCT USER MANUAL
PDF                                                                 PDF

Download
Download

Tool Features

Technologies

Our patent-pending All-In-One motor includes the power, control & communication board along with the automatic winding stator with an interior permanent magnet design rotor, all enclosed in a die-cast cover. These one-unit components have several advantages, including weight reduction, longer lifespan, and crucially our number one design goal of efficiency as there are no additional components to cool.

We have leveraged decades of electrical expertise from some of the world’s leading electrical engineers to develop our wireless platform to record and control our professional assembly tools, that can be remotely controlled via our software or different protocols for PLC systems.

DC motors have traditionally been driven by carbon brushes to power the motor. Over time these wear out and need replacing. All our motors are brushless meaning that the motor is controlled electronically without the need for carbon brushes ensuring your tool is maintenance-free.

PRODUCT VIDEO

TECHNICAL SPECIFICATIONS

Key features include:
  • The oil pulse unit uses oil hydraulics to effectively reduce torque reaction, vibration, and noise
  • Precise auto shut-off when it reaches the desired torque with LED and buzzer indicator of joint status for either good or not-good fixing
  • Built-in 2-way wireless communication that can connect to a PLC unit or computer
  • The brushless motor ensures the use of wear-free components, which reduces maintenance costs and extends the life cycle of the product



Additional information

Model

RZ2013-3-WR40
Voltage

Drive

3/8" Square
Control Torque Range

15 – 40 Nm
Programmable Speed

800 – 6,000 RPM
Tool length

192 mm

Dimensional drawing

NOISE / VIBRATION INFORMATION

Noise Value

Sound Pressure Level (LpA )
73.2/ dB(A)
  • Noise Uncertainty (K Factor) 3.0 dB(A)

Vibration Value

Average Vibration Level (Ah)*
2.95/m / s2
  • Uncertainty  Level (K Factor)3.0 m/s2
