Designed for Industry 4.0, this series is both robust and intelligent, allowing an audit trail to be created for user operations, utilizing cutting-edge technologies for critical and non-critical operations alike.

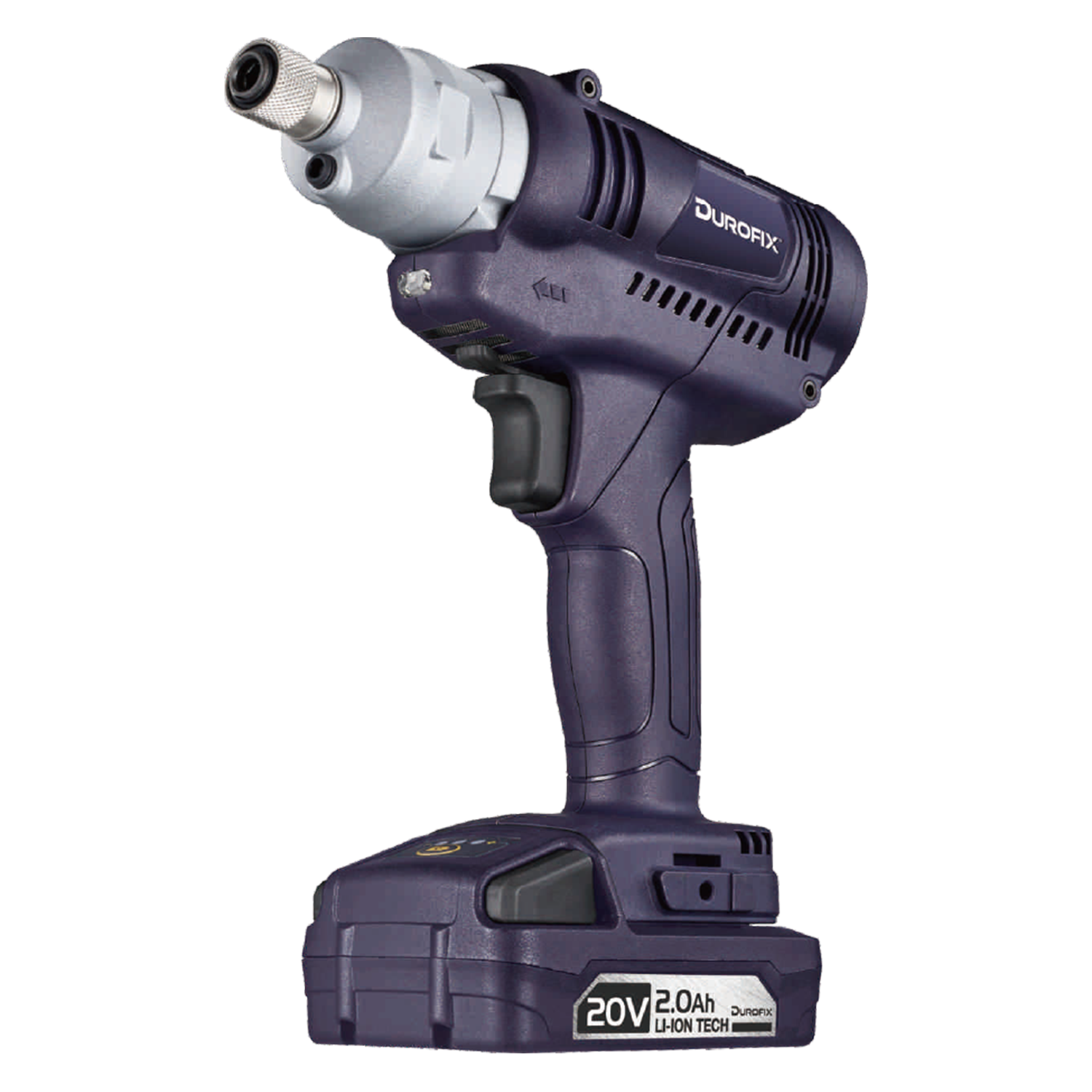

RZ2013-D-WR30

RZ2013-D-WR30

20V BRUSHLESS Oil Pulse Tool

  • Precision fastening in assembly & manufacturing — The oil-pulse mechanism, brushless motor, and auto-shut-off at the set torque make the RZ2013-WR30 ideal for production-line screwdriving and repeatable fastening tasks.
  • Small-to-medium component assembly — With its compact 1/4″ hex or 3/8″ square drive and torque range of 12–30 Nm (WR30 version), it’s suitable for delicate or small-scale mechanical assemblies where controlled torque and finesse are needed.
  • Quality-controlled or traceable fastening operations — Built-in wireless communication and LED/buzzer joint-status feedback allow monitoring and logging of each fastening, making the tool well suited for work that requires documented torque accuracy.
  • Comfortable, low-vibration operation for repetitive work — The oil-pulse system significantly reduces torque reaction, vibration and noise compared with mechanical impacts, making it easier on the operator during frequent or long runs of fastening tasks.

PRODUCT DATASHEET                                          PRODUCT USER MANUAL
PDF                                                                 PDF

Download
Download

Tool Features

Technologies

Our patent-pending All-In-One motor includes the power, control & communication board along with the automatic winding stator with an interior permanent magnet design rotor, all enclosed in a die-cast cover. These one-unit components have several advantages, including weight reduction, longer lifespan, and crucially our number one design goal of efficiency as there are no additional components to cool.

We have leveraged decades of electrical expertise from some of the world’s leading electrical engineers to develop our wireless platform to record and control our professional assembly tools, that can be remotely controlled via our software or different protocols for PLC systems.

DC motors have traditionally been driven by carbon brushes to power the motor. Over time these wear out and need replacing. All our motors are brushless meaning that the motor is controlled electronically without the need for carbon brushes ensuring your tool is maintenance-free.

PRODUCT VIDEO

TECHNICAL SPECIFICATIONS

Key features include:
  • The oil pulse unit uses oil hydraulics to effectively reduce torque reaction, vibration, and noise
  • Precise auto shut-off when it reaches the desired torque with LED and buzzer indicator of joint status for either good or not-good fixing
  • Built-in 2-way wireless communication that can connect to a PLC unit or computer
  • The brushless motor ensures the use of wear-free components, which reduces maintenance costs and extends the life cycle of the product



Additional information

Model

RZ2013-D-WR30
Voltage

Drive

1/4" Hex
Control Torque Range

12-30 Nm
Programmable Speed

800 – 6,000 RPM

Dimensional drawing

NOISE / VIBRATION INFORMATION

Noise Value

Sound Pressure Level (LpA )
73.2/ dB(A)
  • Noise Uncertainty (K Factor) 3.0 dB(A)

Vibration Value

Average Vibration Level (Ah)*
2.95/m / s2
  • Uncertainty  Level (K Factor)3.0 m/s2
SKU: RZ2013-D-WR30 Category: Brand:
