This platform is an combination of our extensive research to find optimal conditions for industrial users. Higher voltages result in less heat generated due to less current draw needed to achieve the same power while maintaining a longer run-time.
TECHNologies
Product ImagesÂ
TECHNICAL SPECIFICATIONS
 Key features include:
*High-speed, low-impact vibration ensures effective concrete consolidation without damaging the surface of the ICF
*High efficiency: max no load vibration at up to 13,000 per minute, with up to 200 mins continuous run-time

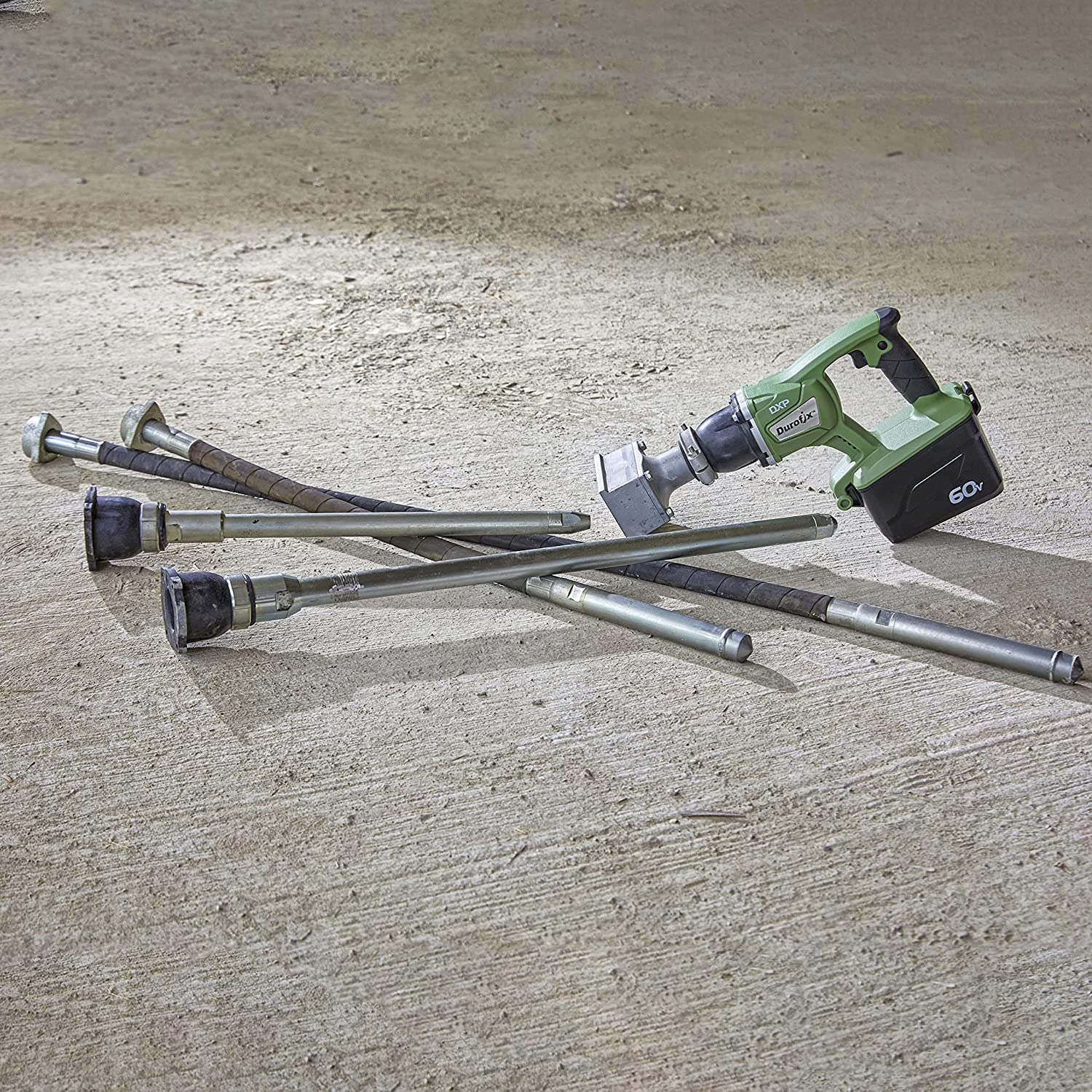

*Interchangeable attachments for various applications

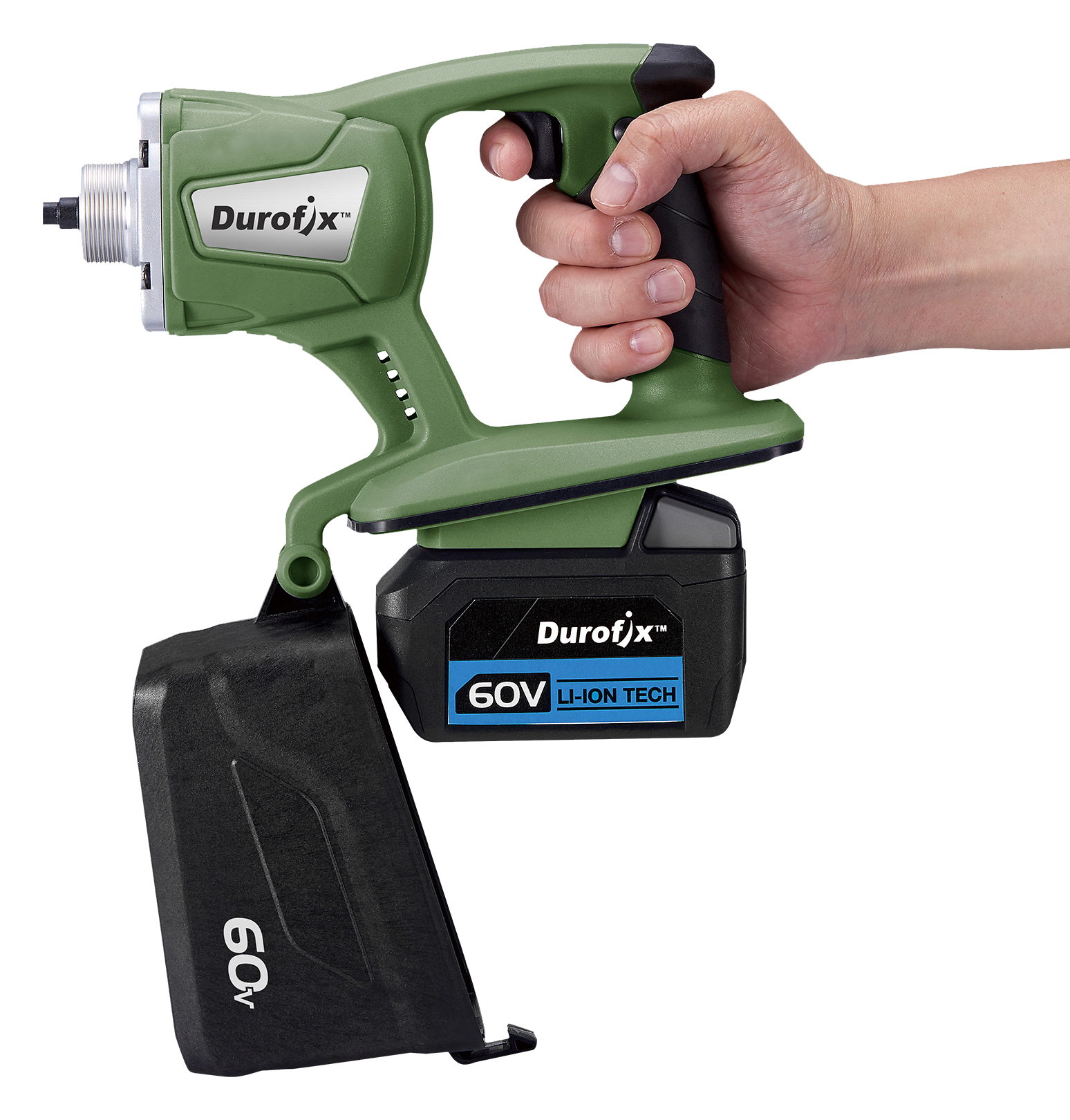

*Battery pack protective cover and trigger lock
*Perfect for a slabs, steps, and other concrete applications
Additional information
| Model | RZ6008-25DS, RZ6008-28DL, RZ6008-28FP, RZ6008-28FPL, RZ6008-KCA |
|---|---|
| Voltage | |
| Vibrations per Minute | 12,500 VPM, 13, 000 VPM, 9,500 VPM |
| Max. Run-time (2.0Ah Battery) | 100 mins, 120 mins, 130 mins, 200 mins |
| Head Dimension (Ø x Length) | Ø 25 x 447 mm, Ø 28 x 186 mm, Ø 28 x 635 mm, Ø 76 mm x 133 mm |
| Tool length | 1070 mm, 1474 mm, 410 mm, 748 mm, 936 mm |
| Tool Weight | 2.98 kg, 3.08 kg, 3.28 kg, 3.98 kg, 4.18 kg |
Dimensional drawing
NOISE / VIBRATION INFORMATION
Noise Value
Sound Pressure Level (LpA )- Noise Uncertainty (K Factor) 3.0 dB(A)
Vibration Value
Average Vibration Level (Ah)*- Uncertainty Level (K Factor) 3.0 m / s2
