This platform is an combination of our extensive research to find optimal conditions for industrial users. Higher voltages result in less heat generated due to less current draw needed to achieve the same power while maintaining a longer run-time.
Tool Features
Technologies
Our patent-pending All-In-One motor includes the power, control & communication board along with the automatic winding stator with an interior permanent magnet design rotor, all enclosed in a die-cast cover. These one-unit components have several advantages, including weight reduction, longer lifespan, and crucially our number one design goal of efficiency as there are no additional components to cool.
DC motors have traditionally been driven by carbon brushes to power the motor. Over time these wear out and need replacing. All our motors are brushless meaning that the motor is controlled electronically without the need for carbon brushes ensuring your tool is maintenance-free.
TECHNICAL SPECIFICATIONS
Key features include:
* Extended run-time and low risk of thermal throttling due to efficient 60v platform drawing less current and heat
* Equivalent to 15A corded power performance
* Dual action trigger to eliminate accidental trigger actions
* High performance and advanced ergonomics
* Robust metal gearbox housing for durability
* Three-position side handle
Additional information

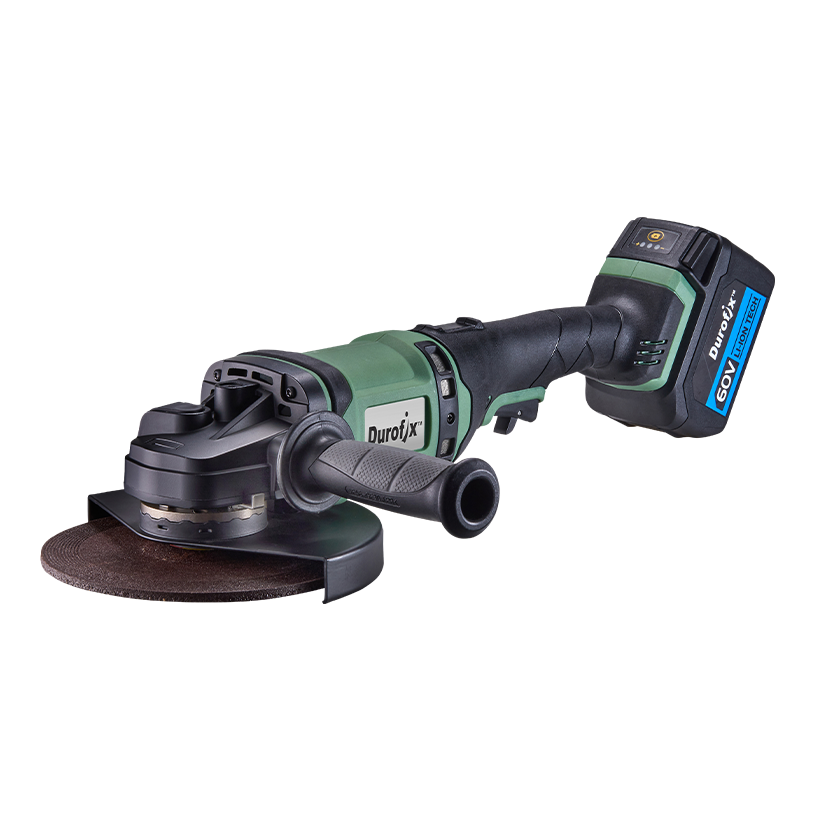

| Model | RG6020-150 |
|---|---|
| Voltage | |
| Disc Size | 6” |
| No Load Speed | 4,000 / 6,000 / 9,000 RPM |
| Spindle Thread | M14 |
| Tool Weight | 3.67kg |
Dimensional drawing
NOISE / VIBRATION INFORMATION
Noise Value
Sound Pressure Level (LpA )- Noise Uncertainty (K Factor) 3.0 dB(A)
Vibration Value
Average Vibration Level (Ah)*- Uncertainty Level(K Factor) 3 m/s2
