Designed for Industry 4.0, this series is both robust and intelligent, allowing an audit trail to be created for user operations, utilizing cutting-edge technologies for critical and non-critical operations alike.

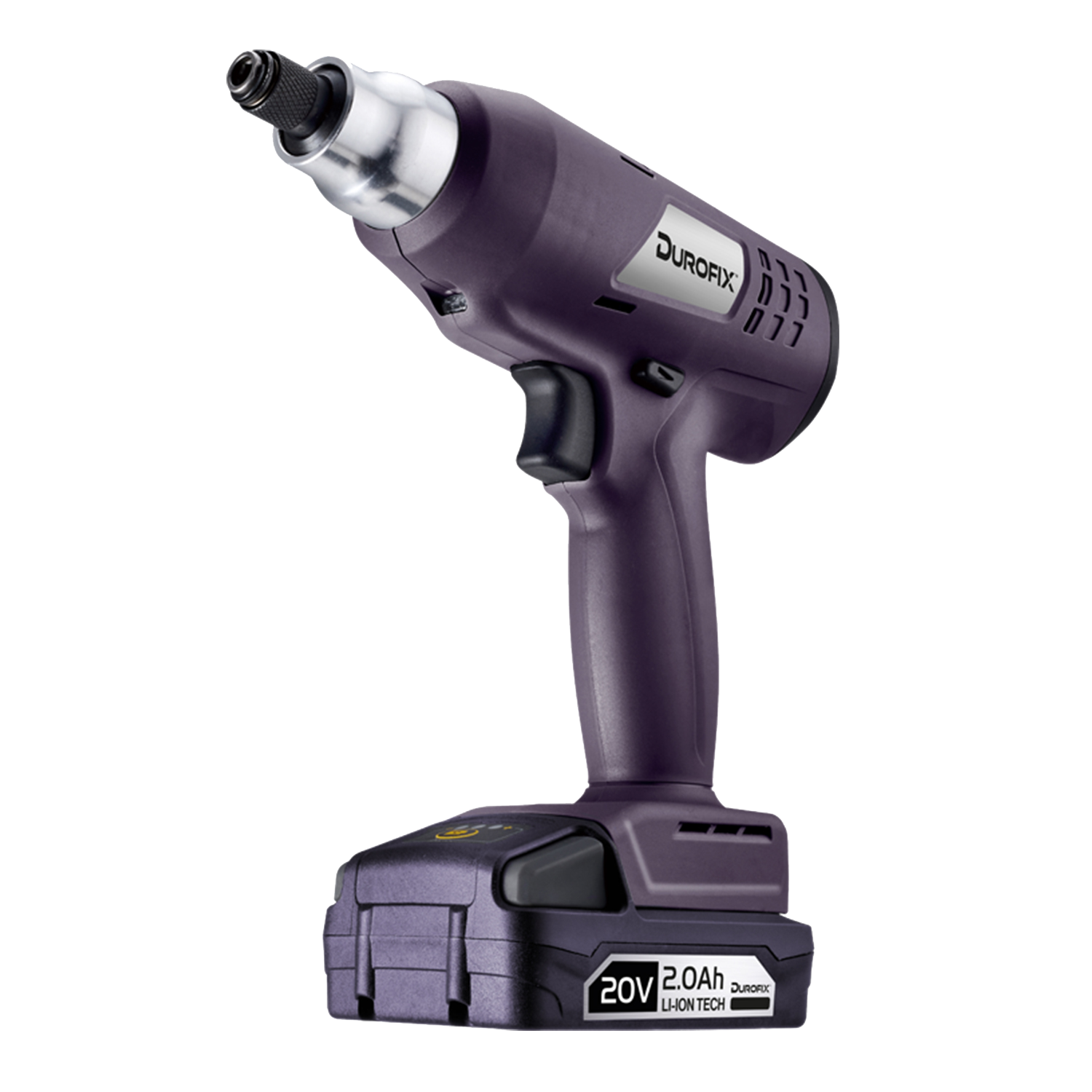

RV2052-WR8

RV2052-WR8

20V Transducerized Precision Pistol

  • Precise low-torque fastening for light assemblies — The 1/4″ drive and ~1–8 Nm torque range make RV2052-WR8 ideal for controlled screwdriving in electronics, small machinery, or delicate assemblies where small fasteners require gentle, accurate tightening.

  • Small-component or fixture assembly work — Its compact design and fine torque control suit small or light-duty mechanical or electrical assemblies (e.g. brackets, housings, enclosures, panels) where overtightening must be avoided.

  • Quality-controlled, repeatable fastening operations — With transducer-based torque sensing and auto shut-off, the tool ensures consistent torque delivery, making it valuable for production-line work needing repeatability and traceability.

  • Lightweight, ergonomic & maintenance-friendly — The brushless motor, low reaction force, and 20 V battery platform make the tool comfortable for repeated use and suitable for frequent fastening tasks, while keeping maintenance needs low.

PRODUCT DATASHEET                                          PRODUCT USER MANUAL
PDF                                                                 PDF

Download
Download

Tool Features

Technologies

Our patent-pending All-In-One motor includes the power, control & communication board along with the automatic winding stator with an interior permanent magnet design rotor, all enclosed in a die-cast cover. These one-unit components have several advantages, including weight reduction, longer lifespan, and crucially our number one design goal of efficiency as there are no additional components to cool.

We have leveraged decades of electrical expertise from some of the world’s leading electrical engineers to develop our wireless platform to record and control our professional assembly tools, that can be remotely controlled via our software or different protocols for PLC systems.

DC motors have traditionally been driven by carbon brushes to power the motor. Over time these wear out and need replacing. All our motors are brushless meaning that the motor is controlled electronically without the need for carbon brushes ensuring your tool is maintenance-free.

PRODUCT VIDEO

TECHNICAL SPECIFICATIONS

Key features include:

* OLED display for instant achieved torque, angle, and batch count information

* Incorporates a built-in transducer that is ideal for safety-critical applications with real-time torque feedback

* Built-in 2-way wireless communication that can connect to a PLC unit or computer

* Precise auto shut-off when it reaches the desired torque with LED and buzzer indicator of joint status for either good or not-good fixing

* The brushless motor ensures the use of wear-free components, which reduces maintenance costs and extends the life cycle of the product



Additional information

Model

RV2052-WR8
Voltage

Drive

1/4" Hex
Control Torque Range

1 – 8 Nm
No Load Speed

50 – 1,200 RPM
Accuracy

Cmk (based on 6 σ) ≥ 1.67 at ±10%
Tool length

206 mm
Tool Weight

1.00 kg

Dimensional drawing

NOISE / VIBRATION INFORMATION

Noise Value

Sound Pressure Level (LpA )
69.2/ dB(A)
  • Noise Uncertainty (K Factor) 3.0 dB(A)

Vibration Value

Average Vibration Level (Ah)*
1.35/m / s2
  • Uncertainty  Level (K Factor)3.0 m/s2
SKU: RV2052-WR8 Categories: , Tags: , , Brand:
