This platform is an combination of our extensive research to find optimal conditions for industrial users. Higher voltages result in less heat generated due to less current draw needed to achieve the same power while maintaining a longer run-time.

RY6001

RY6001

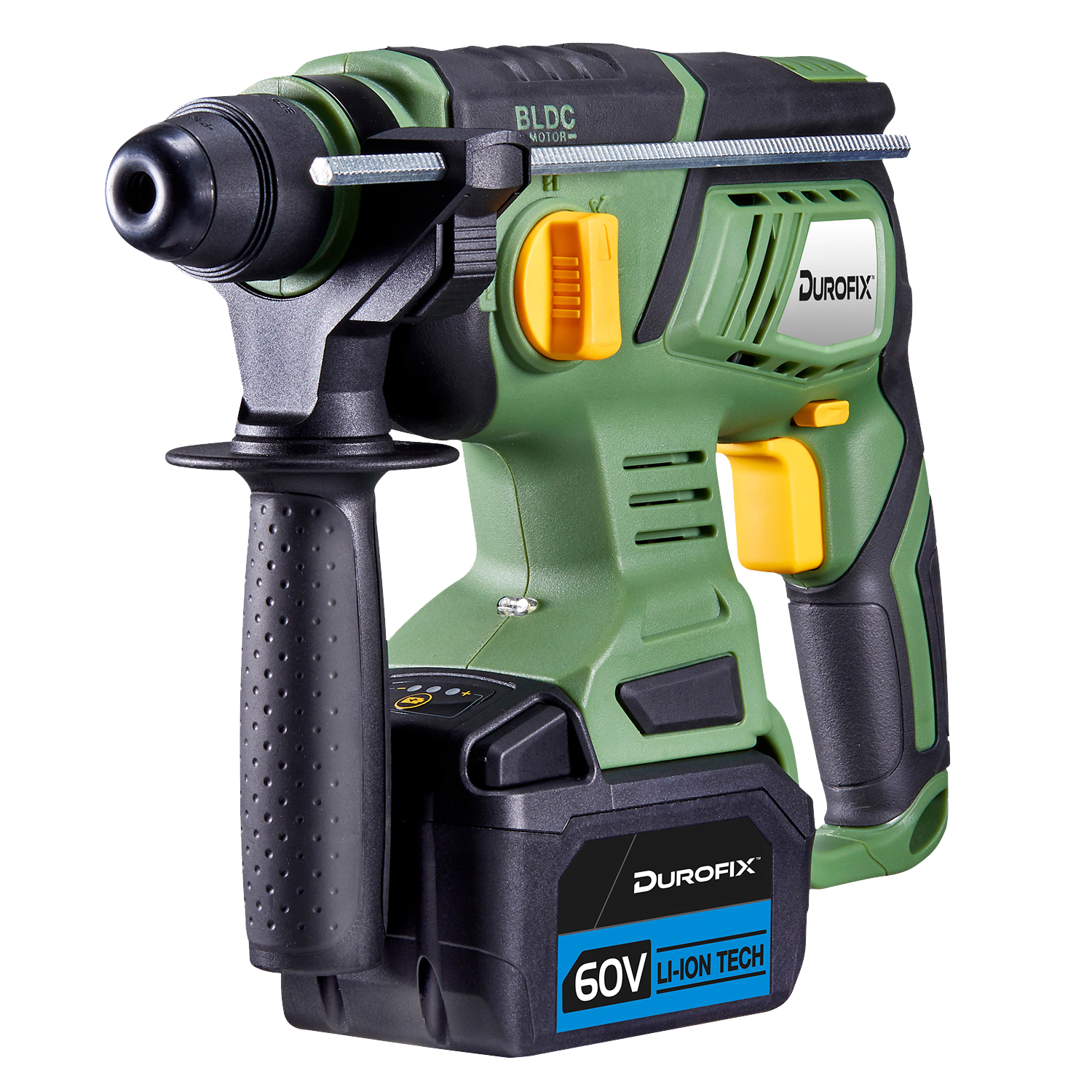

60V Rotary Hammer Drill

  • Masonry and concrete drilling – The SDS-Plus chuck and 2.3 J impact energy make it effective for drilling into concrete, brick, and block, with up to 1,700 RPM and 5,600 BPM for efficient performance.
  • Light-duty demolition / chiselling – The 3-mode selector (drill, hammer-drill, hammer-only) and adjustable chisel angle allow controlled removal of small masonry sections.
  • On-site construction / renovation – A side handle helps reduce fatigue during extended or awkward drilling, and the built-in LED light improves visibility in tight or dim areas.
  • High-power, long-duration tasks – The 60 V platform delivers strong, sustained runtime, while the brushless motor increases efficiency, lowers maintenance, and enhances durability.



PRODUCT DATASHEET                                          PRODUCT USER MANUAL
PDF                                                                 PDF

Download
Download

TECHNologies

Product Images

TECHNICAL SPECIFICATIONS

 Key features include:

* 3-mode selector switch with drill mode, hammer drill mode, and hammer mode

* Chisel positioning

* Side handle reduces user fatigue

* Built-in LED light for convenient illumination during work



Additional information

Voltage

Model

RY6001
Chuck

SDS Plus
Impact Energy

2.3 J
No Load Speed

0 – 1,700 RPM
Blows per Minute

0 – 5,600 BPM
Tool Weight

1.66 kg

Dimensional drawing

NOISE / VIBRATION INFORMATION

Noise Value

Sound Pressure Level (LpA )
90.3/ dB(A)
  • Noise Uncertainty (K Factor) 3.0 dB(A)

Vibration Value

Average Vibration Level (Ah)*
9.3/m / s2
  • Uncertainty  Level (K Factor) 3.0 m / s2
